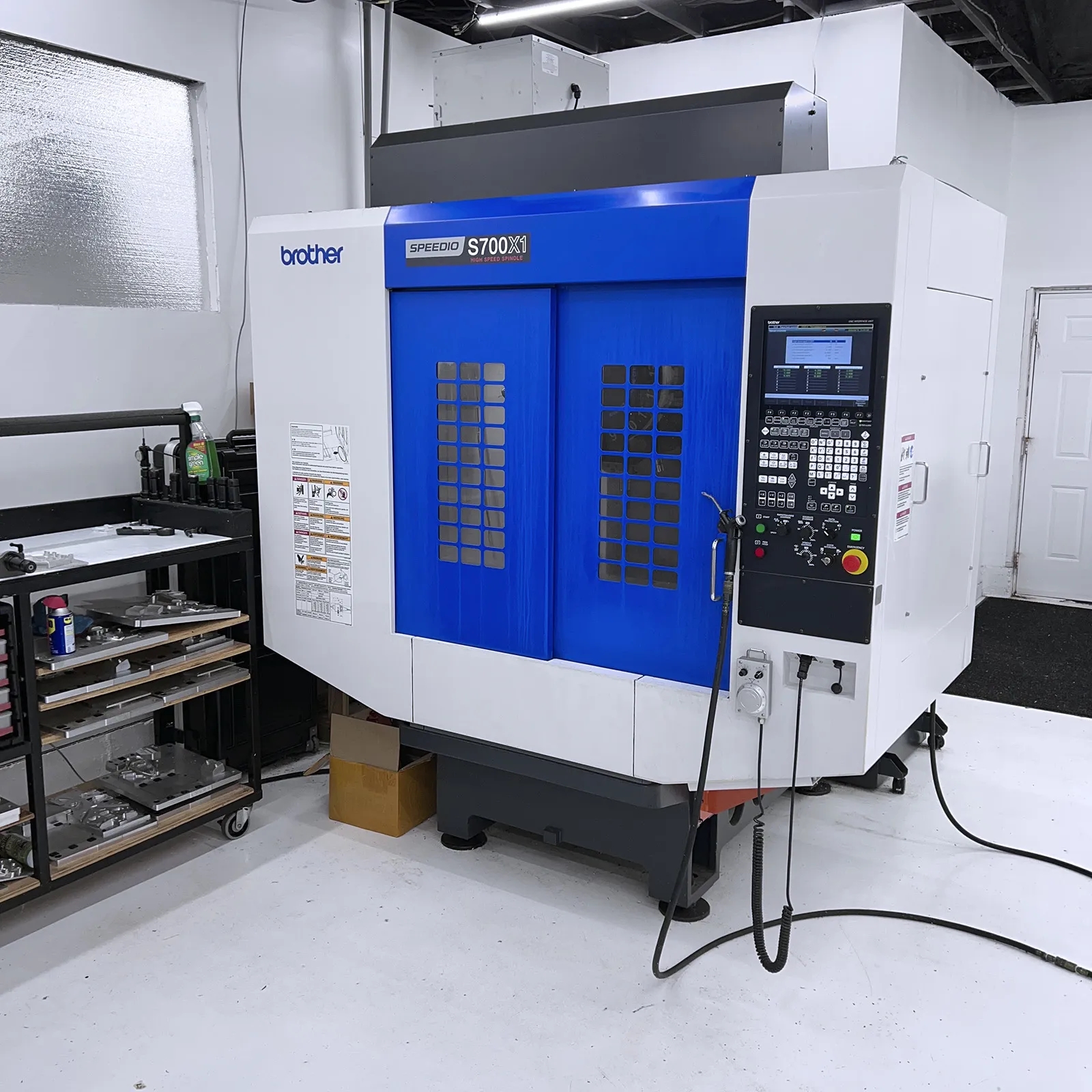

Brother Speedio S700X1 2020

machine specifications

• X-Axis Travel:

  700 mm (27.6")

• Y-Axis Travel:

  400 mm (15.7")

• Z-Axis Travel:

  300 mm (11.8")

• Table Size:

  800 mm x 400 mm (31.5" x 15.7")

• Max Table Capacity:

  250 kg (550lbs)

• Spindle Nose to Table Distance:

  180 mm – 480 mm

• Spindle Speed:

  Up to 27,000 RPM

• Rigid Tapping Max Speed:

  8,000 RPM

• Spindle Taper:

  BT30

• Tool Setting:

  Integrated Metrol TM26D-01 tool setter with a 60 mm rise block.
