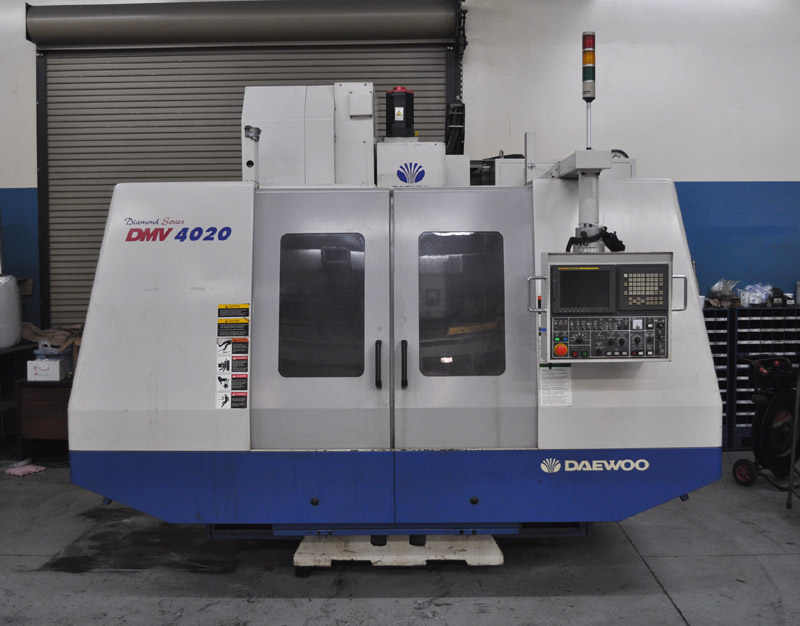

Daewoo DMV4020 2002

machine specifications

• Max Swing (inches):

  17.32"

• Pallet Size (inches):

  25"

• Resonator ( Type ):

  55

• Wire Traveling Speed:

  22

• Wire Diameter (inches):

  3333

• Vertical Travel of Ram:

  4444

• V-Axis Travel:

  5555

• Turret Capacity:

  8 Positions

• Chuck Size (Inches):

  8"

• Throat Depth:

  9.45"

• Bar Stock Capacity:

  2.0"

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• X and Y axis rapid traverse rate:

  1181 IPM

• Z axis rapid traverse rate:

  945 IPM

• Spindle Speed:

  12,000 RPM

• Spindle Motor (HP):

  20/15 HP (Cont. / 30 min)

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Torque:

  142 ft-lbs.

• Spindle Nose to Table Top:

  5.9" - 30.5"

• Column To Spindle Center:

  20.5"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Allowable Table Load:

  1,760 lbs.

• Number of Tools:

  24 Positions (22 Pockets)

• Tool Changer Type:

  60 ATC

• Max. Tool Length:

  11.8"

• Max. tool weight:

  17.6 lbs.

• Max. Tool Diameter (w/o adj Tool):

  3.5" / 5.9"
