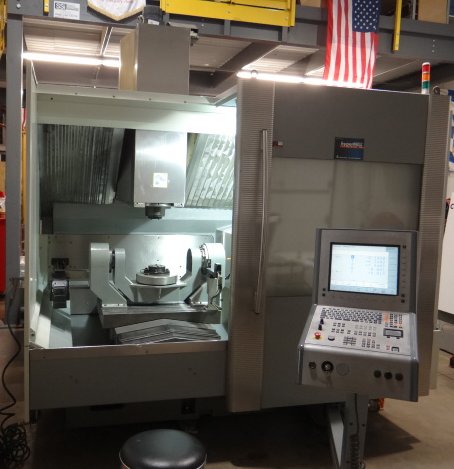

Deckel Maho DMG DMC64V 2002

machine specifications

• Throat Depth:

  9.45"

• Chuck Size (Inches):

  8"

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Speed:

  12,000 RPM

• Bar Stock Capacity:

  2.0"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Tool Changer Type:

  60 ATC

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• X - Axis Travel (inches):

  15.7" / 400mm

• Max Swing (inches):

  17.32"

• Vertical Travel of Ram:

  4444

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Pallet Size (inches):

  25"

• Resonator ( Type ):

  55

• Wire Traveling Speed:

  22

• Wire Diameter (inches):

  3333

• Feed force X/Y/Z:

  7,000 N

• Feed Rate:

  0.04-1,575 IPM

• Rapid traverse X/Y,Z:

  2,755 IPM (70 m/min) No ballscrew in X-Axis

• Rapid Traverse Y-Axis:

  1,575 ipm (40 m/min)

• Rapid Traverse Z-Axis:

  1,575 ipm (40 m/min)

• Ball screw diameter/pitch (Y/Z):

  1.57/0.6" (40/15 mm)

• Acceleration X-Axis:

  5 m/s-2

• Acceleration Y-Axis:

  4 m/s-2

• Acceleration Z-Axis:

  5 m/s-2

• Positioning Accuracy Y,Z Axis:

  0.0004" (0.010 mm)

• Positioning Accuracy X- Axis:

  0.0003" (0.008 mm)

• Heidenhain Glass Scales X/Y/Z Path Measuring System:

  0.001 mm

• Tool clamping force:

  8,000 N

• Tool releasing force:

  13,000 N

• Acceleration 0-12,000 rpm:

  2.3 seconds

• Deceleration 12,000 rpm-0:

  1.4 seconds

• Number of Tools:

  30

• Max Tool Diameter:

  3.9" (100 mm)

• Max Tool Diameter(vacant adjacent):

  5.5" (140 mm)

• Max Tool Length:

  11.8" (300 mm)

• Max Tool Weight:

  15.4 lbs (7 kg)

• Max loading weight of tool magazine:

  198 lbs (90 kg)

• Chip To Chip Time:

  Approx 7 Seconds

• Table Clamping Area w/ T-Slots:

  33.5" x 23.6"

• Loading height:

  33.5"

• Max work load capacity:

  1,320 lbs

• C-Axis rotation range:

  360 x 0.001 degree

• C-Axis rotary speed:

  35 rpm

• A-Axis swivel range:

  +/- 135 degrees

• A-Axis swivel speed:

  35 rpm

• Distance between trunnion flanks:

  Approx. 19.5"

• Max part swing between trunnion flanks:

  Approx. 19"

• Max weight on trunnion table:

  Approx. 265 lbs
