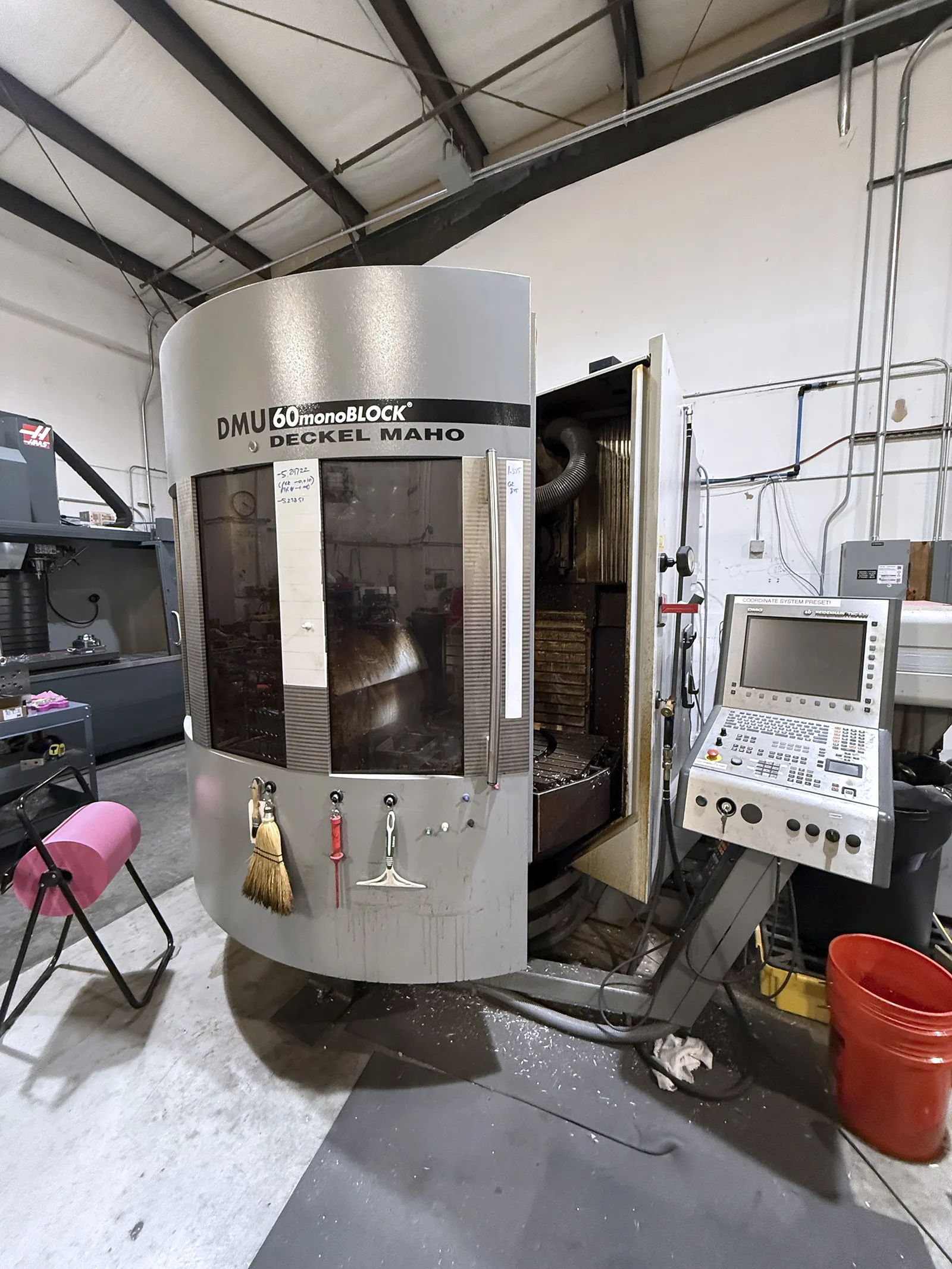

DMG Mori DMU 60 2006

machine specifications

• Number of Axis:

  5-Axis

• Tool Changer:

  24 ATC

• Control:

  HH iTNC 530

• Spindle:

  18,000 rpm

• Spindle Taper:

  CAT40

• X Axis:

  28.74" (730 mm)

• Y Axis:

  22.05" (560 mm)

• B Axis:

  -120.100/+30.100 degrees

• Z axis:

  22.05" (560 mm)

• C axis:

  360 x 0.001 degrees

• Traverse path x (longitudinal):

  28.74" (730 mm)

• Traverse path y (across):

  22.05" (560 mm)

• Traverse path z (vertical):

  22.05" (560 mm)

• Type:

  Brushless AC/Digital

• Rapid traverse linear axes x/y/z:

  1,181 ipm (30 m/min)

• Ballscrews x/y/z:

  40 x 20 mm/40 x 20 mm/50 x 20 mm

• Application:

  Vertical

• Type of gripper:

  Pick Up

• Number of Tool Stations:

  24

• Max Tool Weight:

  17.6 lbs (8 kg)

• Max tool diameter without free side pockets:

  3.15" (80 mm)

• Max tool diameter with free side pockets:

  5.12" (130 mm)

• Max Tool Length:

  12.4" (315 mm)

• Input resolution:

  0.001 mm

• Table clamping surface:

  23.62" (600 mm) Diameter

• Maximum load table center:

  1,102 lbs (500 kg)

• Rigid table clamping surface:

  39.4" x 23.6" (1,000 mm x 600 mm)

• Rigid table maximum load:

  1,543 lbs (700 kg)

• Type of main drive:

  AC

• Drive power 100% dc:

  25.5 HP (19 kW)

• Drive power 40% dc:

  37.5 HP (28 kW)

• Max spindle torque 100% dc:

  60.5 Ft/Lb. (82 Nm)

• Max spindle torque 40% dc:

  89.2 Ft/Lb. (121 Nm)

• Speed Range:

  20-18,000 RPM

• Acceleration from 0-18,000 rpm:

  2.2 Seconds

• Number of gear steps:

  None

• Spindle bearing diameter front/rear:

  3.15"/2.36" (80/60 mm)
