This Machine has been sold and is No longer Available... Find similar machines below

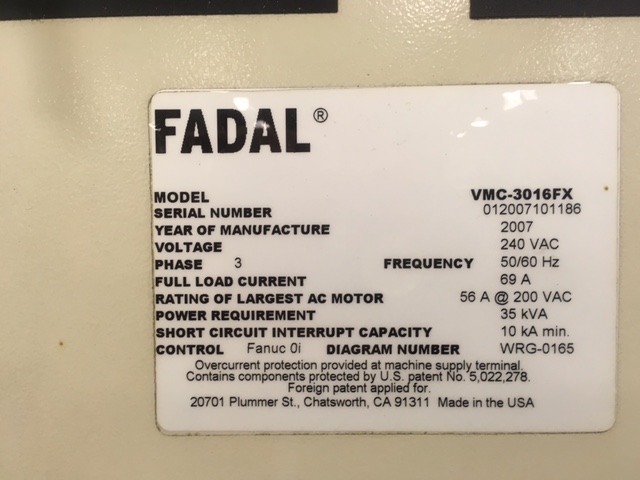

Fadal 3016FX 2007

MAKE: Fadal
YEAR: 2007
TYPE: Vertical Machining Center

MODEL: 3016FX
CONTROL: Fanuc Oi-MC
REF #:

Sell Similar Machine

Get a quote to sell your machine

Buy Similar / Same Machine

View available similar machines

Activate Search Agent

We'll help you find what you need

machine specifications

Chuck Size (Inches):

8"
Max Swing (inches):

17.32"
X - Axis Travel (inches):

15.7" / 400mm
Y - Axis Travel (inches):

15.7" / 400mm
Z - Axis Travel (inches):

14.7" / 375mm

machine equipped with

TS27 Probe. Vices NOT included.

machine description

General S.A.I. Metric Floor to table surface 32" 812.8 mm Machine weight 8,550 lbs 3,878 kg Floor space (width x depth) 127" x 68" 3225 x 1727 mm Table Table size 39" x 16" 990.6 x 406.4 mm Longitudinal (X Axis) 30" 762 mm Latitudinal (Y Axis) 16" 406.4 mm Vertical (Z Axis) 20" (Opt. 28") 508 mm (Opt. 711.2 mm) Spindle nose to table 4" - 24" (4" - 32" Opt.) 101.6 - 609.6 mm (101.6 - 812.8 mm Opt.) Spindle center to column ways 16.1" 408.94 mm T-Slots (No. x Width x Span) 3 x .709" x 4.33" 3 x 18 mm x 110 mm Cutting feed rate (X/Y/Z) 600 ipm max 15.24 mpm max Rapid travel rate (X/Y) 900 ipm 22.86 mpm Rapid travel rate (Z) 700 ipm 17.78 mpm Max. Weight on table 2,736 lbs 1,241 kg Ball screw size 1.57" Dia. 40 mm Dia. Accuracy Axis positioning ± .0002" ± .0050 mm Axis repeatability ± .0001" ± .0025 mm Spindle Spindle speed 10 - 15,000 rpm = Spindle taper No. 40 = Tools ATC, Number of tools 21 21 ATC, Tool selection Random / Bi-directional = Max. Tool diameter 3" 76.2 mm (without adjacent tools) 4.5" 114.3 mm Max. Tool length 15" 381 mm Max. Tool weight 15 lbs 6.8 kg Motor Spindle drive motor AC, Vector Drive = Horsepower 10 HP 7.5 kW Torque 70 ft.-lbs. 95.4 N-m Axis drive motor (X/Y/Z) AC, 3,800 lbs. thrust AC, 1,724 kg thrust Miscellaneous Air Pressure 80-120 psi, 15 scfm 5.5-8.3 bar, .42m3/min Power Requirement (3-Phase) 65 A @ 230 VAC =
