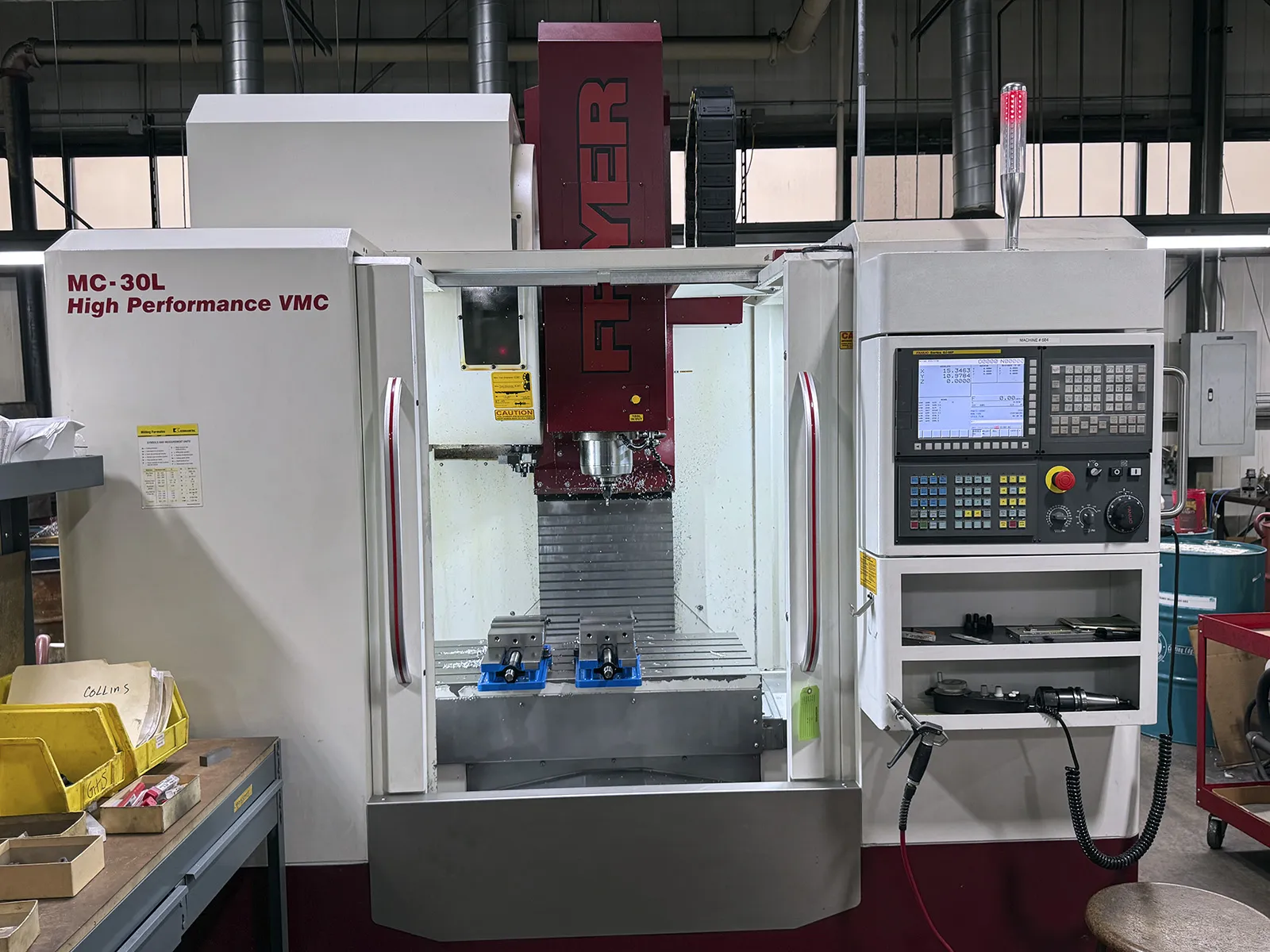

Fryer MC-30L 2020

machine specifications

• X Travel:

  30"

• Y Travel:

  20"

• Z Travel:

  20"

• Ballscrew Size:

  1.57"

• Table Load (Evenly Distributed):

  2,500 LBS

• Table Size:

  20"X35"

• T-Slots (NO./Width):

  5/.708"

• TableTop To Floor:

  28"

• Motor HP (Peak):

  28HP

• Spindle Speed (RPM):

  60-10,000

• Spindle Torque (Max):

  155 FT/LBS @ 350 RPM

• Tool Type/Taper:

  BIG PLUS CAT 40

• Spindle Nose to Table (Max-Min):

  24"-4"

• Spindle Center to Column:

  21"

• Tool Storage Capacity:

  30 STATION HIGH SPEED ARM TYPE

• Tool Change Time:

  1.5 SEC

• Max. Tool Diameter (Full):

  3.2"

• Max. Tool Diameter (Adjacent Empty):

  5.9"

• Max. tool weight:

  15.4 LBS

• Max. Tool Length:

  13"

• Positioning Accuracy X,Y,Z:

  +/- 0.0002"

• Positioning Repeatability X,Y,Z:

  +/- 0.0001"

• Resolution:

  0.0001"

• Rapid Traverse:

  1,450 X, Y, Z

• Cutting Feed Rate:

  .001 - 1,200 IPM

• Servo Type:

  AC Digital Brushless

• Axis Thrust (Peak):

  4,000 lbs. X, Y, Z

• Air Pressure Requirements:

  90PSI - 5 CFM

• Coolant Capacity:

  90 Gallons

• Coolant flow:

  9 gal/min

• Door Open Width:

  32"

• Power Requirements:

  40amp 380-500 VAC 3PH

• Machine Weight:

  9,500 LBS

• Operating Dimensions (W X D X H):

  111"X86"X110"
