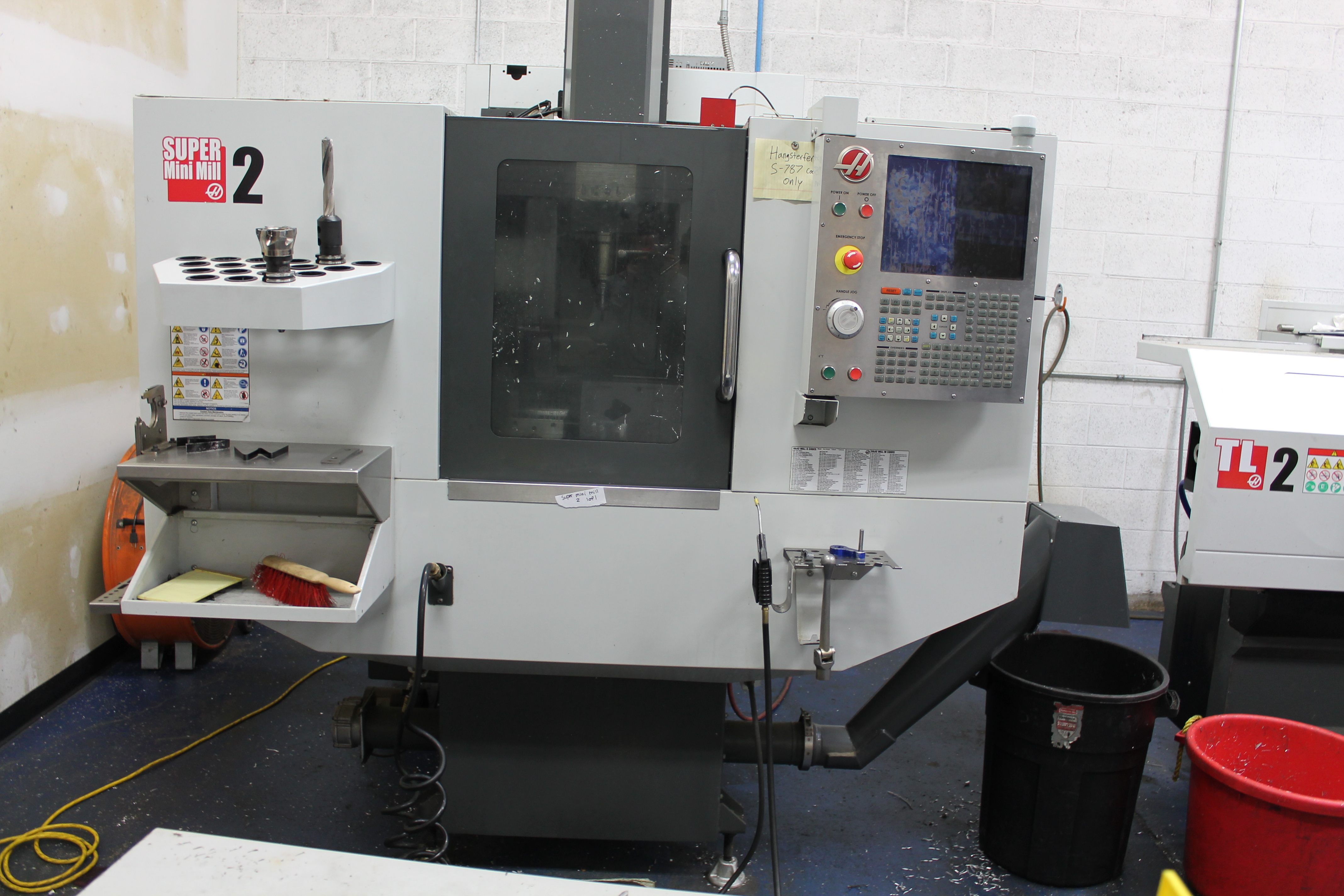

Haas Super Mini Mill 2 2015

machine specifications

• Tool Changer Type:

  60 ATC

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Speed:

  12,000 RPM

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• Resonator ( Type ):

  55

• Chuck Size (Inches):

  8"

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Spindle Nose to Table Max:

  18.0 in

• Spindle Nose to Table Min:

  4.0 in

• Max Rating:

  15.0 HP

• Max Speed:

  10000 RPM

• Max Torque:

  17 ft-lbf @ 4600 rpm

• Drive System Direct Speed:

  Belt Drive

• Taper:

  CT 40

• Bearing Lubrication:

  Air / Oil Injection

• Cooling:

  Air Cooled

• Length:

  40.0 in

• Width:

  14.0 in

• T-Slot Width:

  0.630 in

• T-Slot Center Distance:

  4.90 in

• Number of STD T-Slots:

  3

• Max Weight on Table (evenly distributed):

  500 lb

• Max Cutting:

  833 ipm

• Rapids on X/Y/Z:

  1200 IPM/1200 IPM/ 1200 IPM

• Max Thrust X/Y/Z:

  2000 lbf/2000 ibf/2000 ibf

• Type:

  Carousel

• Capacity:

  20

• Max Tool Diameter (full):

  3.5 in

• Max Tool Weight:

  12 lb

• Tool-to-Tool (avg):

  4.2 s

• Chip-to-Chip (avg):

  4.5 s

• Coolant Capacity:

  40 gal

• Air Required:

  4 scfm @ 100 psi

• Inline Air Hose:

  3/8 in

• Coupler (Air):

  3/8 in

• Air Pressure Min:

  80 PSI

• Input AC Voltage (3 Phase) - Low:

  220 VAC

• Full Load Amps (3 Phase):

  Low 40 A

• Input AC Voltage (3 Phase) - High:

  440 VAC

• Full Load Amps (3 Phase) - High:

  20 A
