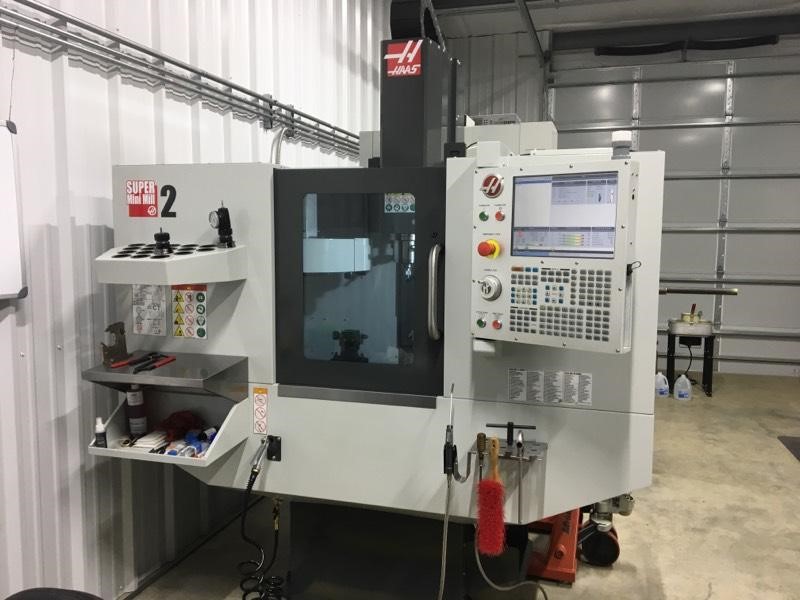

Haas Super Mini Mill 2 2018

machine specifications

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Max Cutting Speed (IPM):

  833

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Nose to Table (Max):

  18"

• Spindle Nose to Table (Min):

  4"

• Max Rating:

  15 HP

• Max Speed:

  10,000 RPM

• Max Torque:

  17 ft-lbf @ 4600 rpm

• Bearing Lubrication:

  Air / Oil Injection

• Length:

  40"

• Width:

  14"

• T-Slot Width:

  0.630"

• T-Slot Center Distance:

  4.90"

• Number of STD T-Slots:

  3

• Max Weight on Table (evenly distributed):

  500 lb

• Rapids on X:

  1,200 IPM

• Rapids on Y:

  1,200 IPM

• Rapids on Z:

  1,200 IPM

• Max Thrust X:

  2000 lbf

• Max thrust Y:

  2000 lbf

• Max Thrust Z:

  2000 lbf

• Capacity:

  20

• Max Tool Diameter:

  3.5"

• Max Tool Weight:

  12 lb

• Tool-to-Tool (avg):

  4.2 S

• Chip-to-Chip (avg):

  4.5 S

• Coolant Capacity:

  40 Gal

• Air Required:

  4 SCFM@ 100 PSI

• Inline Air Hose:

  3/8"

• Coupler (Air):

  3/8"

• Air Pressure Min:

  80 PSI

• Input AC Voltage (3 Phase):

  Low 220 VAC

• Full Load Amps (3 Phase):

  Low 40 A

• Input AC Voltage (3 Phase):

  High 440 VAC

• Full Load Amps (3 Phase):

  High 20 A
