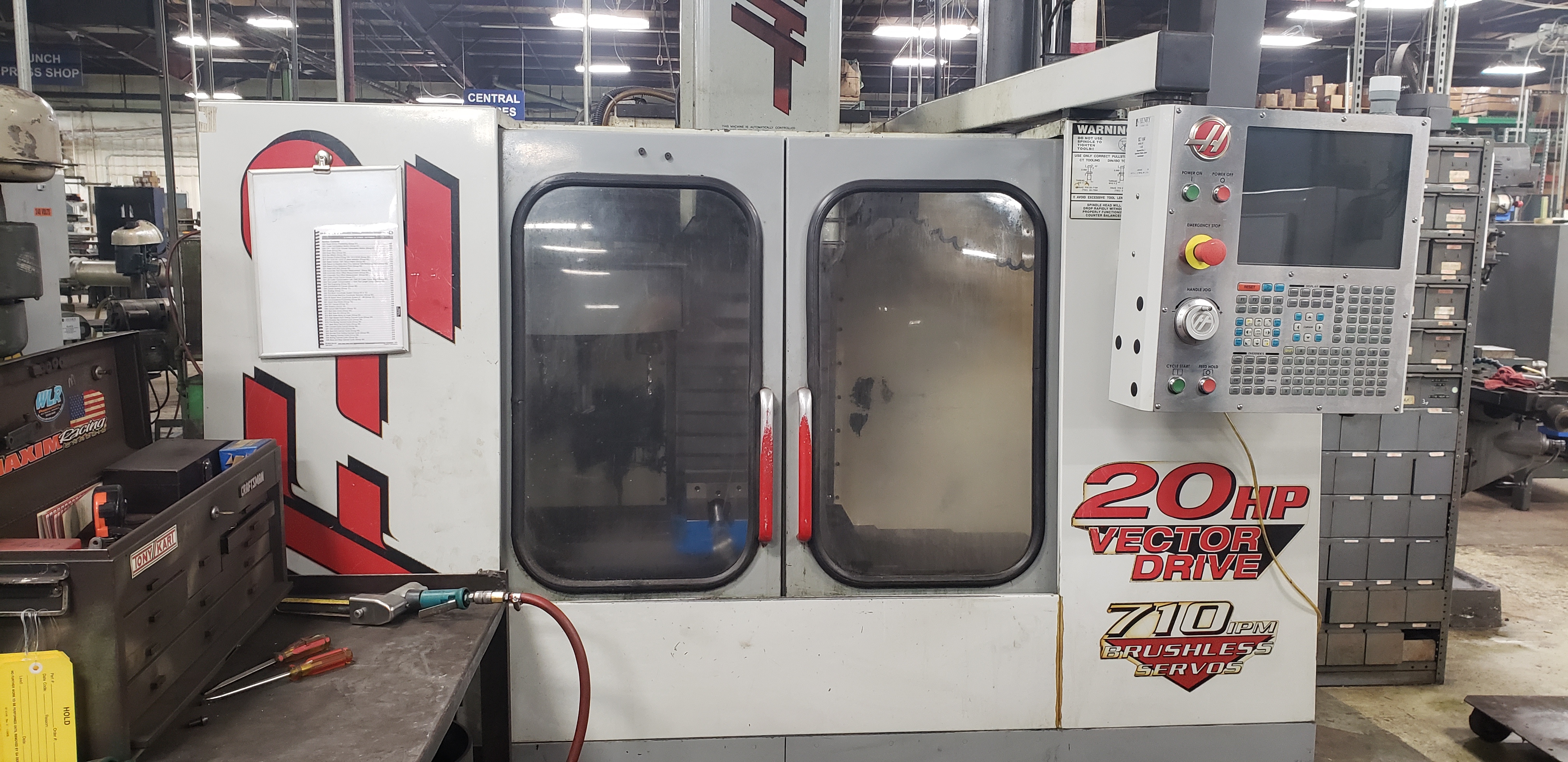

Haas VF-2 1998

machine specifications

• Pallet Size (inches):

  25"

• Resonator ( Type ):

  55

• Wire Traveling Speed:

  22

• Wire Diameter (inches):

  3333

• Vertical Travel of Ram:

  4444

• V-Axis Travel:

  5555

• Turret Capacity:

  8 Positions

• Tool Changer Type:

  60 ATC

• Throat Depth:

  9.45"

• Bar Stock Capacity:

  2.0"

• Max Swing (inches):

  17.32"

• Spindle Speed:

  12,000 RPM

• Spindle Taper (CAT/BT):

  HSK-463

• Chuck Size (Inches):

  8"

• X - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Table Size - L:

  61"

• Table Size - W:

  30"

• Max Torque:

  90ft-lb @ 2000 RPM

• Capacity:

  20 + 1

• Max Tool Weight:

  22 lbs.

• Max Tool Diameter:

  2.9"

• Max Tool Length:

  15.7"

• Tool changing time:

  3.2 Seconds

• Air Required:

  100 psi, 4 scfm

• spindle power:

  20 HP Vector Dual Drive

• Speed Range:

  0 – 7500 RPM

• Spindle Taper Size:

  40

• Max Weight on Table:

  1500 lbs

• T-Slot Width:

  5/8"

• Number of STD T-Slots:

  3

• Spindle Nose to Table:

  4" – 24"

• Cutting Feedrates:

  500 IPM

• Rapid Traverse Rates:

  710 IPM

• Power:

  220v / 3-Phase
