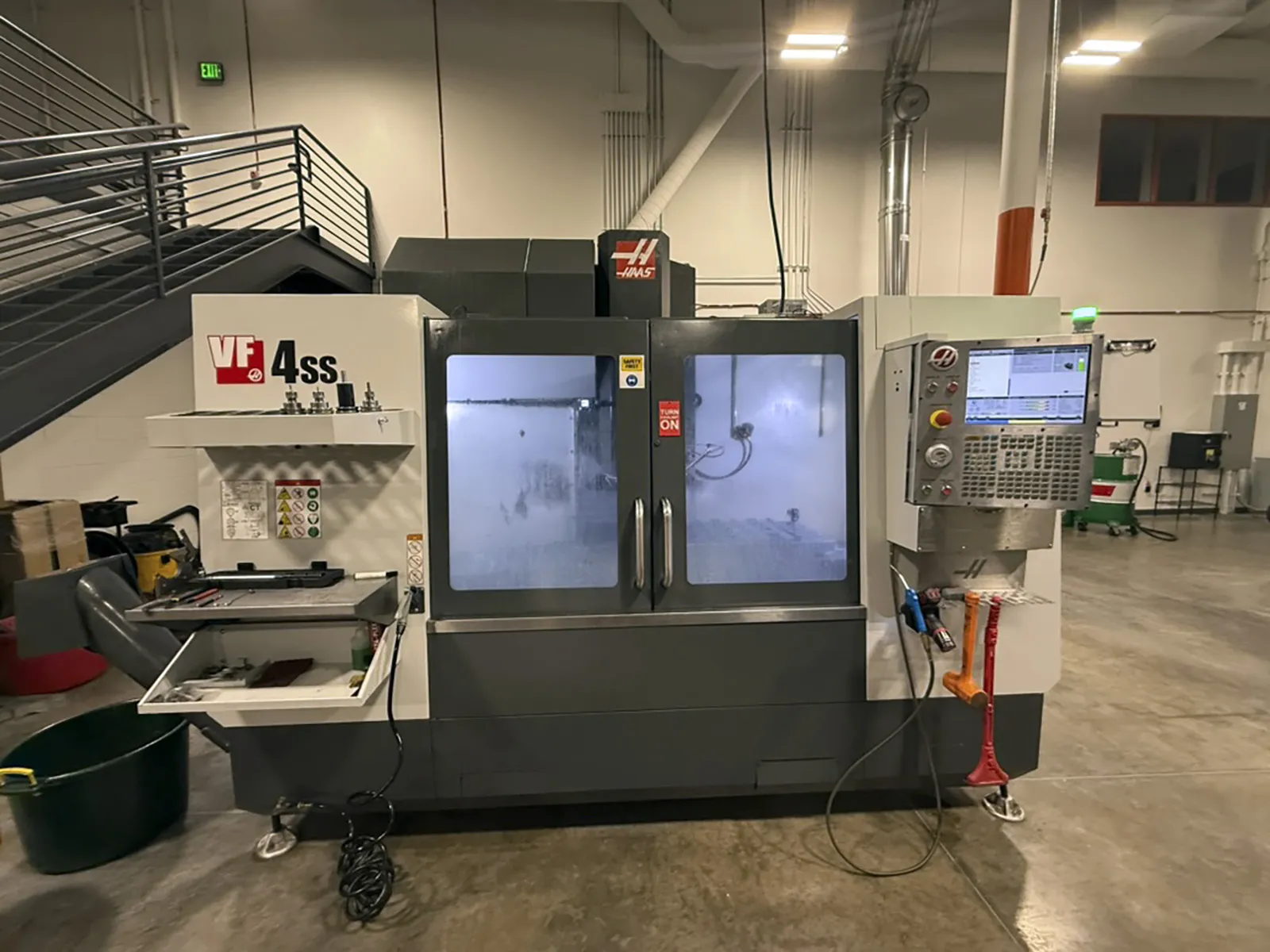

Haas VF-4SS 2017

machine specifications

• Travels:

• X Axis:

  50.0 in (1270 mm)

• Y Axis:

  20.0 in (508 mm)

• Z axis:

  25.0 in (635 mm)

• Spindle:

• Max Speed:

  12,000 RPM

• Power:

  30 hp (22.4 kW)

• Max Torque:

  90 ft-lb @ 2,000 RPM

• Drive Type:

  Inline direct-drive

• Cooling:

  Liquid cooled

• Taper Options:

  CAT40

• Size:

  52.0" × 19.5"

• Max Table Load:

  1,750 lb (evenly distributed)

• T-Slots:

  5 @ 3.15" spacing

• Feedrates:

• Max Cutting Feed:

  833 ipm

• Rapid Traverse (X/Y/Z):

  1,400 ipm (35.6 m/min)

• Dims:

• Footprint (shipping):

  ~152" × 99" × 106"

• Weight:

  ~11,700 lbs
