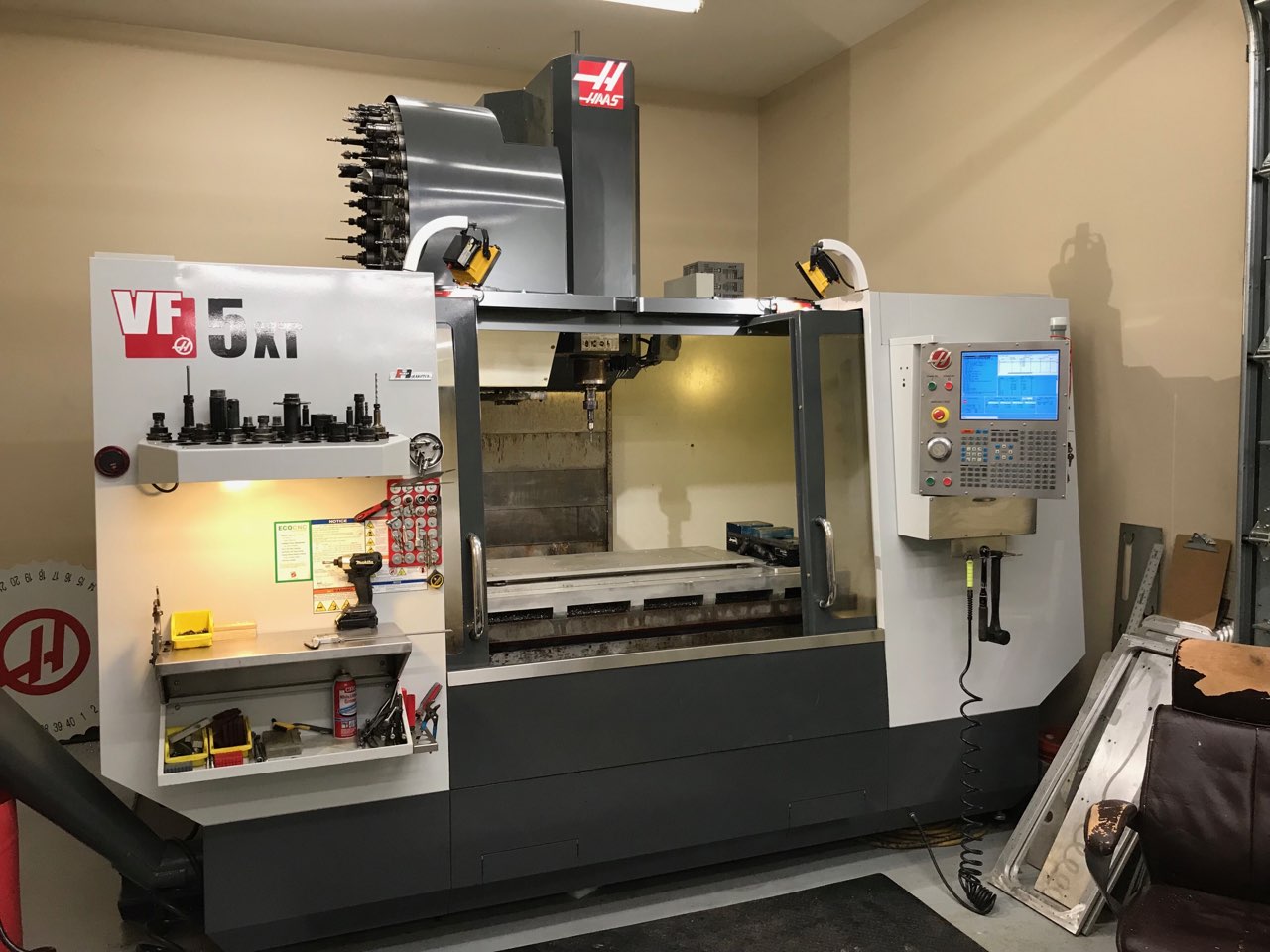

Haas VF-5 XT/40 2011

machine specifications

• Table Size - L:

  61"

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• Resonator ( Type ):

  55

• Tool Changer Type:

  60 ATC

• Throat Depth:

  9.45"

• Table Size - W:

  30"

• Pallet Size (inches):

  25"

• Bar Stock Capacity:

  2.0"

• Max Swing (inches):

  17.32"

• Spindle Speed:

  12,000 RPM

• Spindle Taper (CAT/BT):

  HSK-463

• Chuck Size (Inches):

  8"

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Spindle Nose to Table:

  (Min) 7.9"/ 32.9" (Max)

• Max Speed With High speed:

  10,000 RPM

• Max Torque:

  340 Ft-lbf @700 RPM

• Length:

  62.0 "

• Width:

  23.0 "

• T-Slot Width:

  .630 "

• T-Slot Center Distance:

  3.15 "

• Number of Standard T-Slots:

  7

• Max Weight on Table (evenly distributed):

  4000lb

• Max Cutting Speed (IPM):

  500 IPM

• Rapids on X:

  710 IPM

• Rapids on Y:

  710 IPM

• Rapids on Z:

  710 RPM

• Taper:

  40
