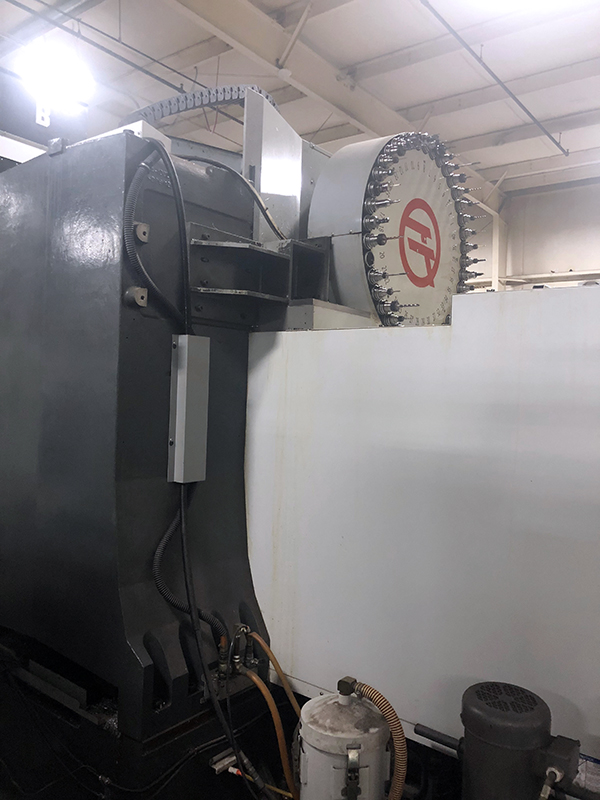

Haas VF-9/40 2010

machine specifications

• Air Required:

  4 scfm @ 100 psi

• Tool Changer Capacity:

  40+1 Capacity

• Max Tool Diameter (full):

  2.5"

• Max Tool Diameter (adjacent empty):

  6"

• Max Tool Length (gage line):

  16"

• Max Tool Weight:

  12 lb

• Tool-to-Tool (avg):

  2.8 s

• Chip-to-Chip (avg):

  3.6 s

• Coolant Capacity:

  95 gal

• Max Thrust Z:

  5600 lbf

• Inline Air Hose:

  3/8"

• Coupler (Air):

  3/8"

• Air Pressure Min:

  80 psi

• Input AC Voltage (3 Phase) - Low:

  220 VAC

• Full Load Amps (3 Phase) - Low:

  70 A

• Input AC Voltage (3 Phase) - High:

  440 VAC

• Full Load Amps (3 Phase) - High:

  35A

• X-Axis Travel:

  84"

• Max Thrust X/Y:

  3400 lbf

• Rapids on X/Y/Z:

  600 ipm

• Max Cutting Feedrate:

  500 ipm

• Max Weight on Table (evenly distributed):

  4000 lb

• Number of STD T-Slots:

  7

• T-Slot Center Distance:

  4.92"

• T-Slot Width:

  0.630"

• Table Size:

  84" x 36"

• Spindle Taper:

  CT40

• Max Torque:

  90.0 ft-lbf @ 2000 rpm

• Max Speed:

  10,000 rpm

• Max Rating:

  30 HP

• Spindle Nose to Table:

  4" - 34"

• Z-Axis Travel:

  30"

• Y-Axis Travel:

  40"
