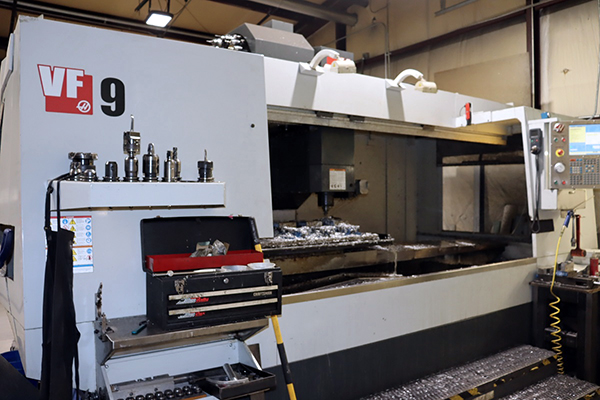

Haas VF-9/40 2012

machine specifications

• X-Axis Travel:

  84"

• Max Thrust X/Y/Z:

  5600 lbf

• Capacity:

  24

• Max Tool Diameter:

  2.5" ( full)

• Max Tool Diameter (adjacent empty):

  6"

• Max Tool Length (from gage line):

  16"

• Max Tool Weight:

  12 lb

• Tool to Tool (avg):

  2.8 s

• Chip to chip (avg):

  3.6 s

• Coolant Capacity:

  95 gal

• Air Required:

  4 scfm @ 100 psi

• Rapids on X/Y/Z:

  600 ipm

• Max Cutting Rate:

  500 ipm

• Max Weight on Table (evenly distributed):

  4000 lb

• Y-Axis Travel:

  40"

• Z-Axis Travel:

  30"

• Spindle Nose to Table:

  4" - 34"

• Max Rating:

  30.0 hp

• Max Speed:

  10,000 rpm

• Max Torque:

  90.0 ft-lbf @ 2000 rpm

• Spindle Taper:

  CT40

• Table Size:

  84" x 36"

• T-Slot Width:

  0.630 "

• T-Slot Center Distance:

  4.92"

• Inline Air Hose:

  3/8 "
