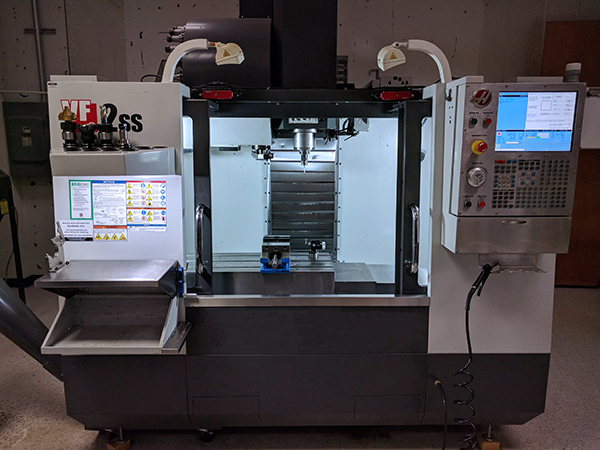

Haas VF-2SS 2011

machine specifications

• Table Size - W:

  30"

• Chuck Size (Inches):

  8"

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Resonator ( Type ):

  55

• Tool Changer Positions:

  24 + 1 Position Side Mount

• Table Size - L:

  61"

• Spindle Motor (HP):

  30 HP- Direct Drive

• Spindle Speed:

  12,000 RPM

• Spindle Taper (CAT/BT):

  HSK-463

• Z - Axis Travel (inches):

  14.7" / 375mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• X - Axis Travel (inches):

  15.7" / 400mm

• Wire Traveling Speed:

  22

• Spindle Nose to Table Top:

  4" - 24"

• Max Table Load:

  1,500 lbs

• Max Tool Weight:

  12 lbs.

• Rapid Feed Rate (X,Y,Z):

  1,400 IPM

• Cutting Feed Rate:

  0.1 - 833 IPM

• Machine Dimensions:

  88" x 93" x 106"H

• Mach. Weight (approx. less floor plates):

  9000 lbs.
