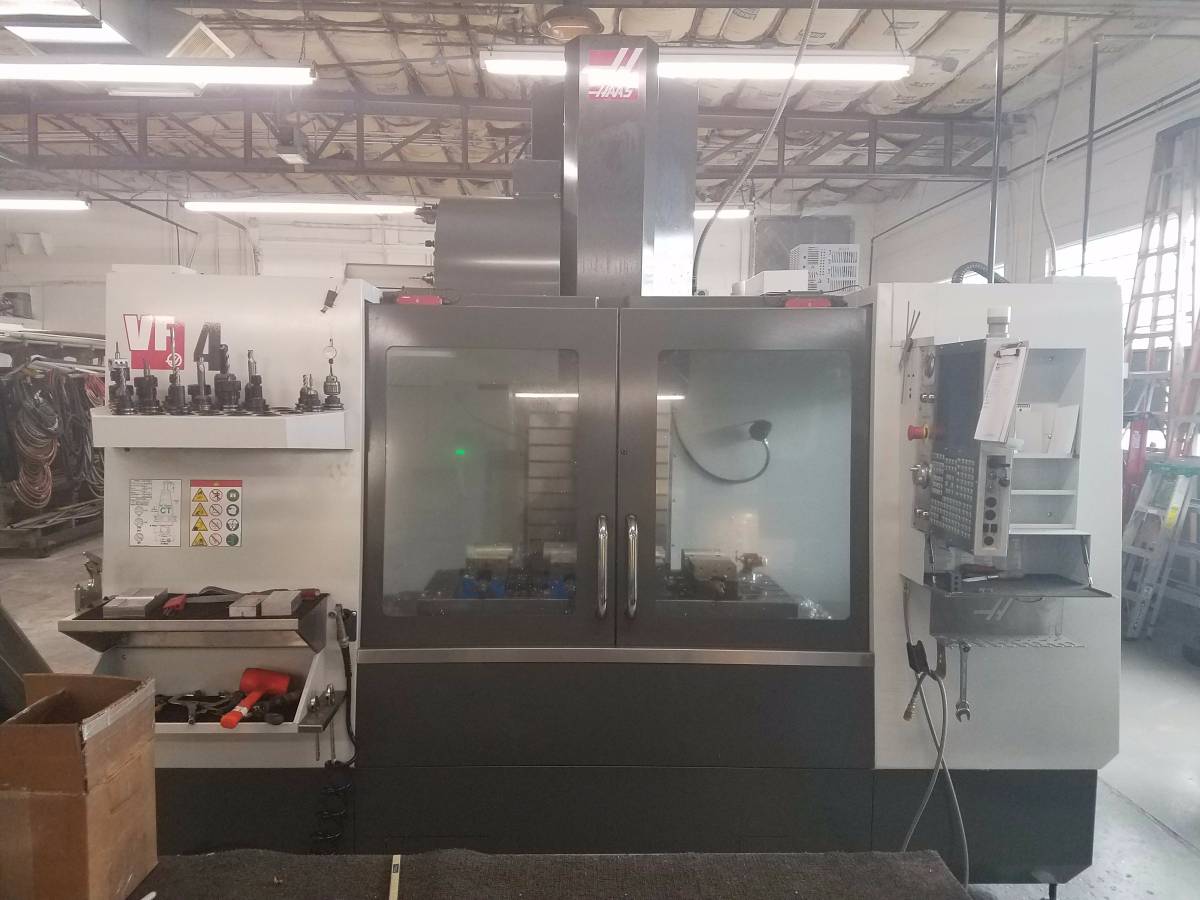

Haas VF-4 2016

machine specifications

• Pallet Size (inches):

  25"

• Resonator ( Type ):

  55

• Chuck Size (Inches):

  8"

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Speed:

  12,000 RPM

• Spindle Motor (HP):

  30 HP

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• Spindle nose to table (~ max):

  29 "

• Spindle nose to table (~ min):

  4 "

• T-Slot Width:

  5/8 "

• T-Slot Center Distance:

  3.15 "

• Number of STD T-Slots:

  5

• Max Weight on Table (evenly distributed):

  3500 lb

• Max Torque:

  90 ft-lb @2000 rpm

• Drive System:

  Inline Direct-Drive

• Max Torque w/opt Gearbox:

  250 ft-lb @ 450 rpm

• Bearing Lubrication:

  Air/Oil injection

• Cooling:

  Liquid Cooled

• Rapids on X/Y/Z:

  1000 in/min

• Max Cutting:

  650 in/min

• Max Thrust X/Y:

  2550 lb

• Max Thrust Z:

  4200 lb

• Tool Changer Type:

  SMTC

• Capacity:

  20

• Max Tool Diameter (full):

  3.5 "

• Max Tool Weight:

  12 lb

• Air Required:

  4 scfm, 100 psi

• Coolant Capacity:

  55 gal
