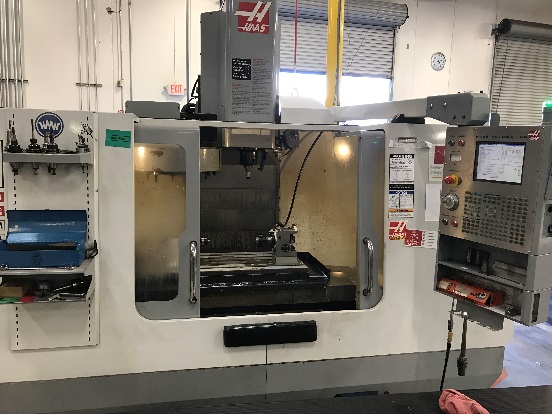

Haas VF-4B 2006

machine specifications

• Resonator ( Type ):

  55

• X - Axis Travel (inches):

  15.7" / 400mm

• Bar Stock Capacity:

  2.0"

• Max Swing (inches):

  17.32"

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Spindle Speed:

  12,000 RPM

• Spindle Motor (HP):

  30 HP

• Chuck Size (Inches):

  8"

• Spindle Taper (CAT/BT):

  HSK-463

• Table Size - L:

  61"

• Table Size - W:

  30"

• Max Weight on Table (evenly distributed):

  3500 LB

• T-Slot Center Distance:

  3.15"

• Turret Capacity:

  8 Positions

• T-Slot Width:

  5/8"

• Number of Standard T-Slots:

  5

• Max Cutting Speed (IPM):

  650 IPM

• Max Tool Diameter:

  3.5"

• Max Tool Weight:

  12 LB

• Tool Changer Type:

  60 ATC

• Tool to Tool (avg):

  4.2 Sec

• Chip to chip (avg):

  4.5 Sec

• Rapids on (X/Y/Z):

  1000 IPM

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• Pallet Size (inches):

  25"

• Throat Depth:

  9.45"
