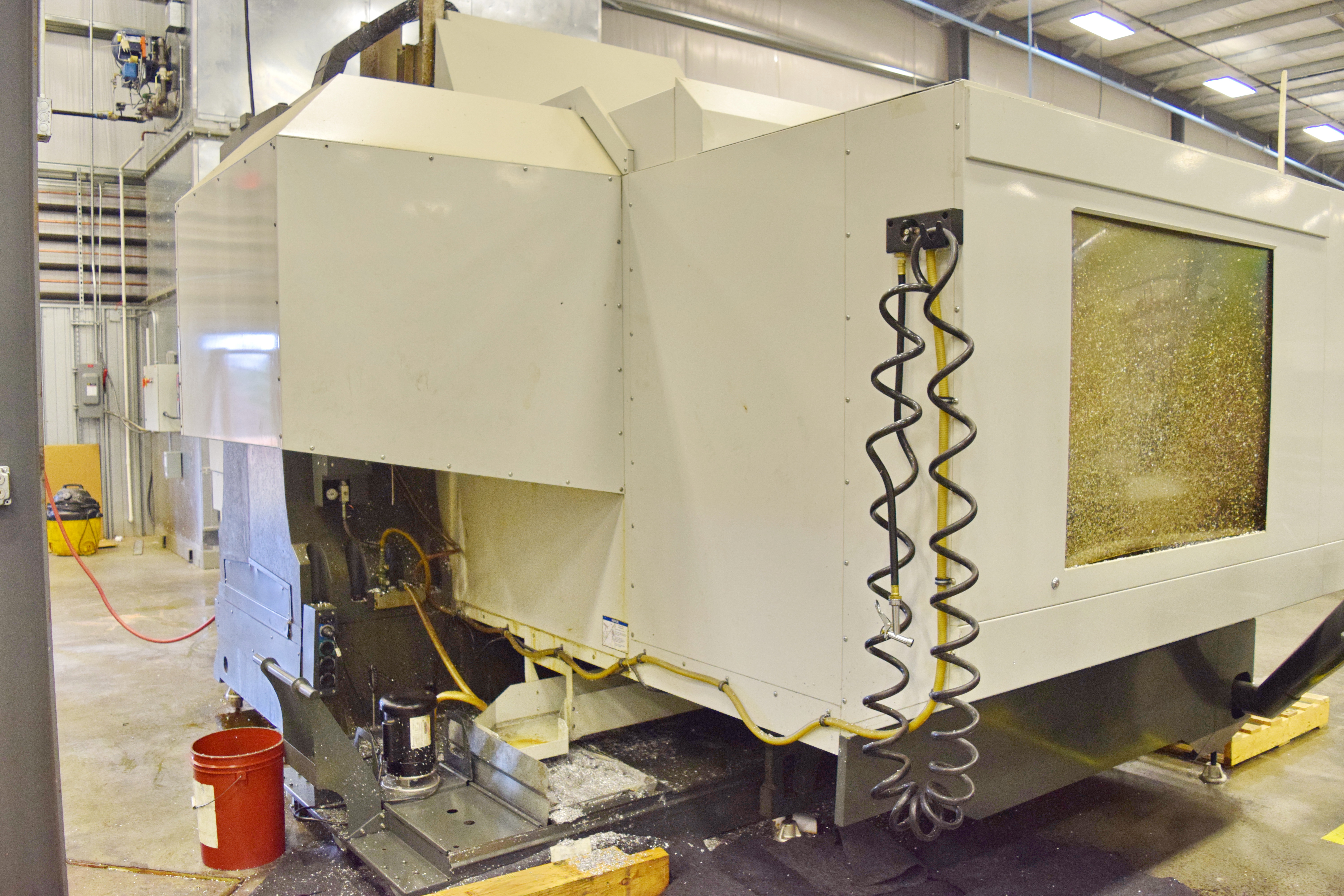

Haas VR-11/40 2013

machine specifications

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• A axis (tilt):

  ± 32 °

• B axis (rot):

  ± 32 °

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Speed:

  12,000 RPM

• Spindle Motor (HP):

  30 HP

• Table Size - W:

  30"

• Table Size - L:

  61"

• Tool Changer Type:

  60 ATC

• Resonator ( Type ):

  55

• Rapids on a:

  1900 °/MIN

• Rapids on b:

  1900 °/MIN

• Rapids on X/Y &Z:

  360 IN/MIN / 600 IN/MIN

• Bar Stock Capacity:

  2.0"

• Air Required:

  9 SCFM, 100 PSI

• Drive System:

  Vector Drive

• Max Rating X/Y&Z:

  7.5 HP / 5.0 HP

• Max Thrust X,Y, & Z:

  3400 LB

• Max Cutting Speed (IPM):

  360 IPM

• Max Cutting A & B:

  600 °/MIN

• Max Tool Diameter:

  3.5"

• Max Tool Weight:

  12 LB

• Tool-to-Tool (avg):

  11.0 Sec

• Coolant Capacity:

  95 GAL

• Bearing Lubrication:

  Air/Oil Injection

• Repeatability A & B Axes:

  10 ARC-SEC

• T-Slot Width:

  5/8"

• Chuck Size (Inches):

  8"

• Max Swing (inches):

  17.32"

• Throat Depth:

  9.45"

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Pallet Size (inches):

  25"

• Wire Traveling Speed:

  22
