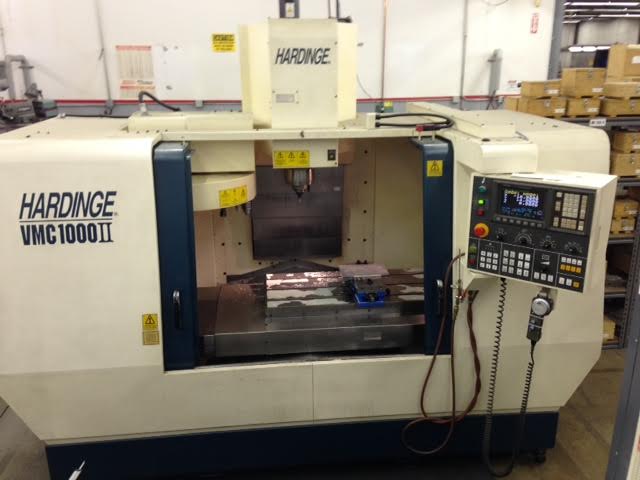

Hardinge VMC-1000II 2000

machine specifications

• Y - Axis Travel (inches):

  15.7" / 400mm

• X - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Speed:

  12,000 RPM

• Spindle Motor (HP):

  15 HP

• Spindle Nose to Table Top:

  6.1" - 26.1"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Maximum Table Load:

  1,540 lbs.

• Tool Changer Type:

  60 ATC

• Tool Changer Positions:

  20

• Maximum Tool Length:

  9.84"

• Maximum Tool Weight:

  13.2 lbs.

• Maximum Tool Diameter:

  3.5"

• Maximum Tool Diameter w/o Adjacent Tool::

  5.9"

• Rapid Traverse X,Y,Z:

  1181 IPM

• Cutting Feed Rate:

  0.1 – 472 IPM

• Resonator ( Type ):

  55

• Bar Stock Capacity:

  2.0"

• Chuck Size (Inches):

  8"

• Max Swing (inches):

  17.32"

• Wire Traveling Speed:

  22

• Wire Diameter (inches):

  3333

• Vertical Travel of Ram:

  4444

• Throat Depth:

  9.45"

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Pallet Size (inches):

  25"
