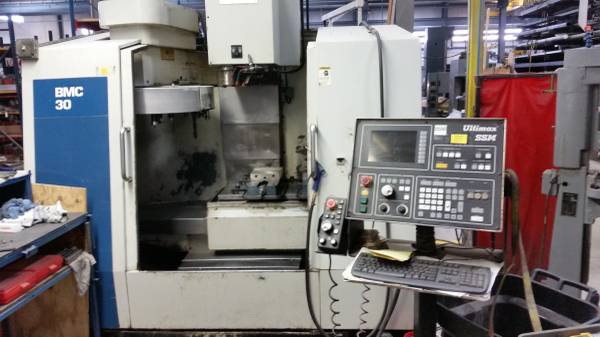

Hurco BMC 30 SSM 1996

machine specifications

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Spindle Speed:

  12,000 RPM

• Spindle Motor (HP):

  10 HP

• Spindle Motor Type:

  Dual Wound

• Spindle Type:

  Cartridge #40; Taper

• Distance from Spindle Nose to Table:

  6" - 30"

• Distance from Spindle Center to Column:

  17.5"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Table Load with Uniform Distribution:

  1100 lbs.

• T-Slot Size:

  .71"

• No. Of T-Slots:

  3

• Tool Holder:

  CAT-40 V-Flange

• Maximum Tool Diameter:

  3.9"

• Maximum Tool Length:

  12"

• Maximum Tool Weight:

  15 lbs.

• Change Time Tool to Tool:

  7 seconds

• Change Time Chip to Chip:

  9 seconds

• Maximum Rapid Travel - X/Y Axis:

  945"/min.

• Maximum Rapid Travel - Z Axis:

  590"/min.

• Maximum Thrust Rating - X/Y Axis:

  1500 lbs.

• Maximum Thrust Rating - Z Axis:

  2415 lbs.

• Bearings:

  ABEC-7 Class Angular Contact

• Bearing Lubrication:

  Grease Packed

• Torque (30 Minutes):

  105 lb/ft at 500 rpm

• Number of Stations:

  24

• Orientation:

  Electronic

• Voltage:

  240 V

• Resonator ( Type ):

  55

• Bar Stock Capacity:

  2.0"

• Chuck Size (Inches):

  8"

• Spindle Taper (CAT/BT):

  HSK-463

• Max Swing (inches):

  17.32"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Pallet Size (inches):

  25"

• Wire Traveling Speed:

  22
