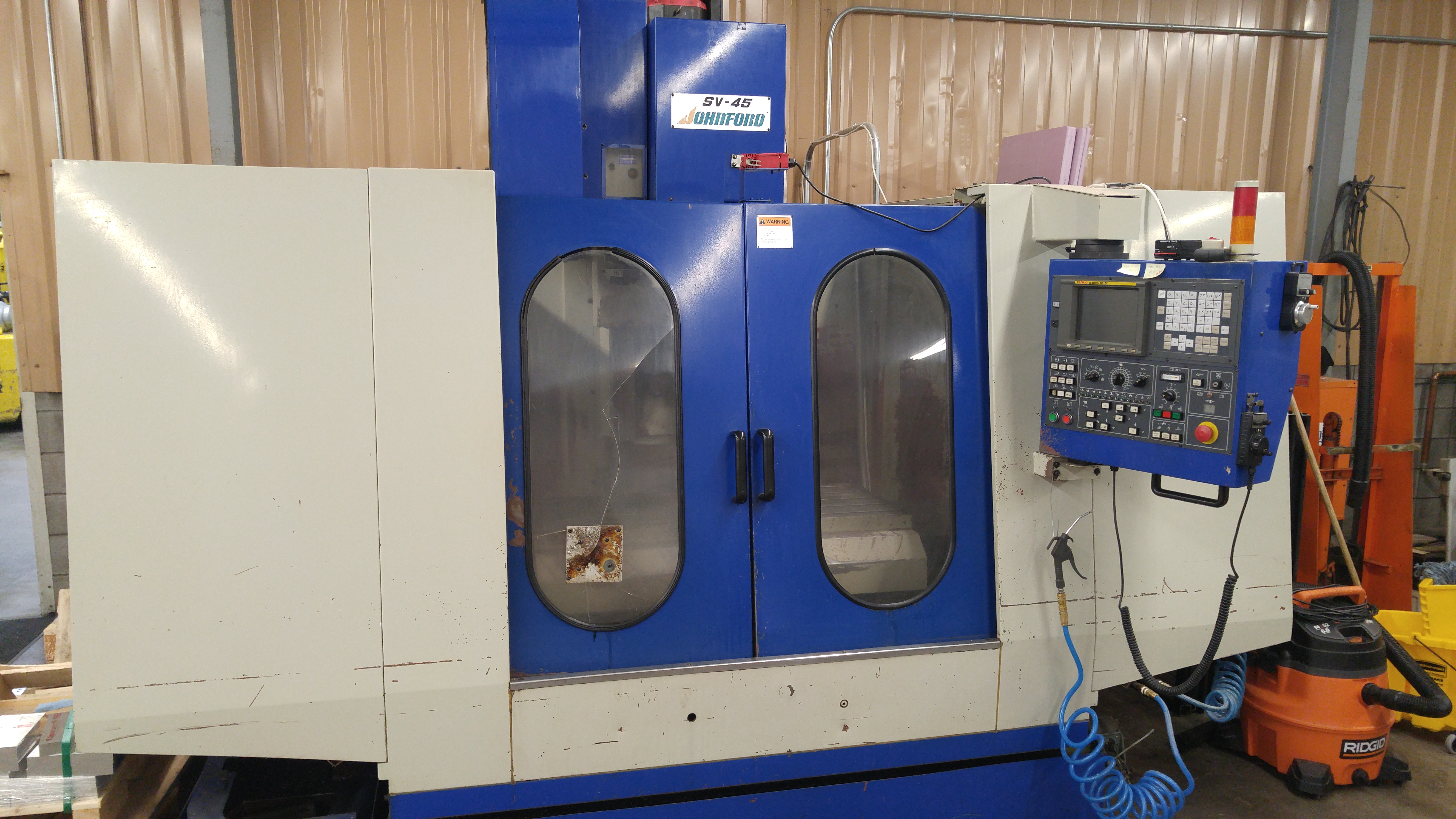

Johnford SV45 1998

machine specifications

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Spindle Speed:

  12,000 RPM

• Spindle Motor (Hi Lo Gear):

  10 / 15 HP

• Spindle Motor (P Motor):

  15 HP/ 20HP

• Spindle to Column:

  21.7"

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Nose to Table:

  5.9" - 31.3"

• Table Size - L:

  61"

• Table Size - W:

  30"

• X/Y/Z Rapid Traverse:

  30/30/20 M/min

• Cutting Feed:

  .04" - 315"

• Tool Selection:

  Bi-direction Random Type. Shortest Path

• Tool Changer Positions:

  16/20/24/30 Arm

• Adjacent Pockets Max Tool Diameter:

  3"

• Maximum Tool Diameter:

  4"

• Maximum Tool Length:

  12.5"

• Maximum Tool Weight:

  22 lbs

• Table Load Capacity:

  3300 lbs

• X/Y/Z Ballscrew Diameter:

  Ø 40

• Cutting Capacity (Milling):

  120 cc/min

• Cutting Capacity (Drilling):

  Ø 1.6"

• Cutting Capacity (Tapping):

  M30 x P3.5

• Resonator ( Type ):

  55

• Bar Stock Capacity:

  2.0"

• Chuck Size (Inches):

  8"

• Max Swing (inches):

  17.32"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Pallet Size (inches):

  25"

• Wire Traveling Speed:

  22
