This Machine has been sold and is No longer Available... Find similar machines below

LEBLOND MAKINO FNC106A30 1989

MAKE: LEBLOND MAKINO
YEAR: 1989
TYPE: Vertical Machining Center

MODEL: FNC106A30

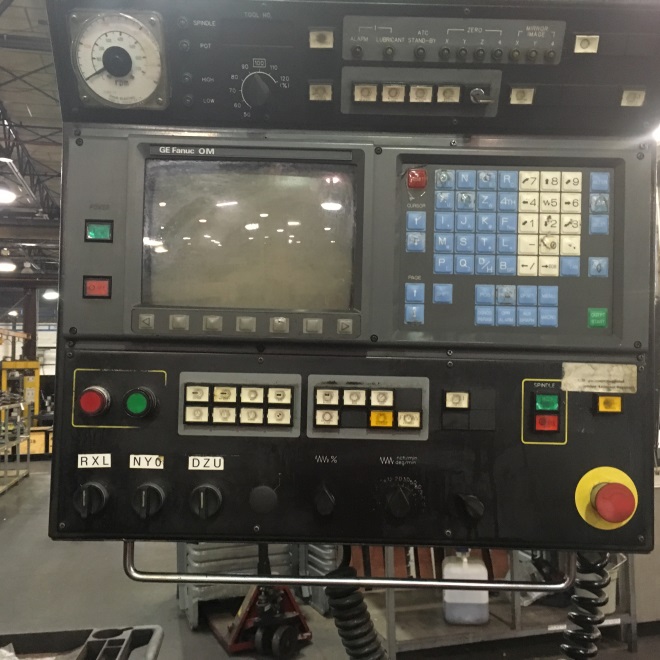

CONTROL: Fanuc OMB
REF #:

Sell Similar Machine

Get a quote to sell your machine

Buy Similar / Same Machine

View available similar machines

Activate Search Agent

We'll help you find what you need

machine specifications

Chuck Size (Inches):

8"
Max Swing (inches):

17.32"
X - Axis Travel (inches):

15.7" / 400mm
Y - Axis Travel (inches):

15.7" / 400mm
Z - Axis Travel (inches):

14.7" / 375mm
Pallet Size (inches):

25"

machine equipped with

Spindle Chiller
Rigid Tapping

machine description

Video is in the server: LeblondMakinoFNC106A30_1989Video Exclusivity Expires 08-05-2016 Travels X axis: (41.34) Y axis:(23.62) Z axis:(22.05) Rapids (all Axis):(472 IPM) Range spindle gage line to table: 8.875 to 30.875) Distance spindle c/l to Column:(25.625) Spindle Size of Taper : Cat 50 Spindle speed range:10- to 3500 RPM (geared 2 speed ranges) Spindle motor: 11/15 Kw (15-20 HP) Rigid tapping: Yes Table (Note: table configuration is for a (43.3 x 19.68) Pallet changer, table is a t-slotted pallet Max load on pallet: 3300 lbs ATC # of Tools: 30 Tool selection: Random Shank size: Cat 50 Tool Change Time: 5 Sec Max tool size (with adj pocket open): (5.71) x (15.75) Max tool Weight :(33 lbs) Capacity Hydraulic unit: (15.8 Gal) Coolant Tank: (24.8 Gal) Pump :42 PSI Power, Dimensions Power: 40 Kva @ 220V Machine Height: (121 1/8) Weight:(19300 lbs) Floor Space:(142 x 169)
