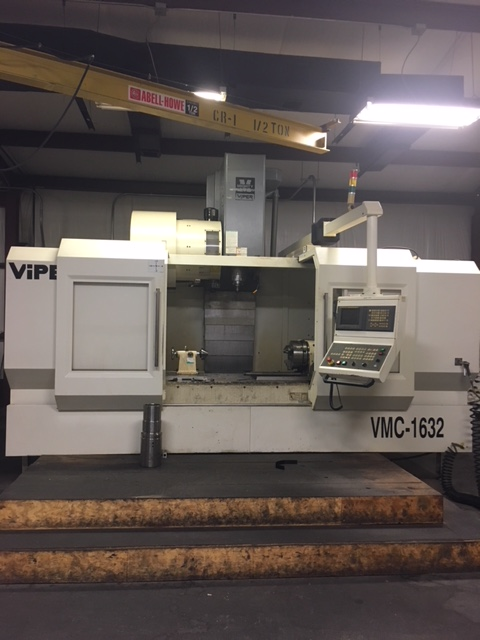

Mighty Viper VMC-1632AG 2010

machine specifications

• Pallet Size (inches):

  25"

• Chuck Size (Inches):

  8"

• Resonator ( Type ):

  55

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Throat Depth:

  9.45"

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• Table Size - L:

  61"

• Table Size - W:

  30"

• Max Table Load:

  2200 KG

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Distance from Spindle End to Table:

  7.87" - 40.16"

• Distance from Spindle Center to Column:

  35.43"

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Speed:

  12,000 RPM

• Spindle Motor (HP):

  35 HP

• Cutting Feedrate (X,Y,Z):

  7000mm/min / 276 IPM

• Rapid Traverse (X,Y,Z):

  15000mm/min / 591 IPM

• Tool Changer Type:

  60 ATC

• Max Tool Weight:

  15 KG

• Max Tool Size:

  125mm x 300mm

• Tool Shank:

  CAT 50

• Pull Stud Bolt:

  P50T-1

• Tool Change Type:

  Random

• Read more
