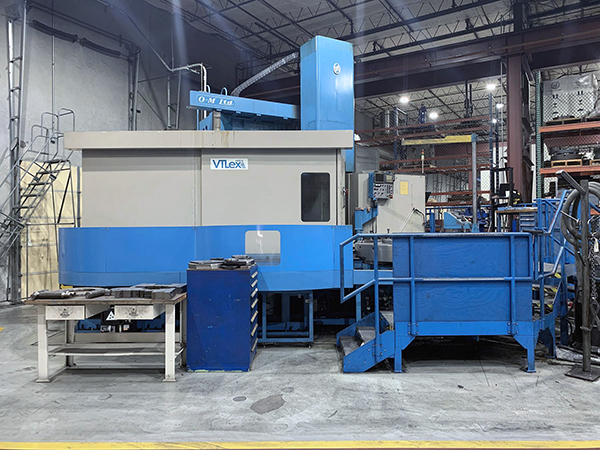

O-M VTLEX 1600M 2009

machine specifications

• Table Speeds (Infinitely Variable):

  2 X

• Table Diameter:

  63" (4-Jaw Independent)

• Number of Pallets:

  2

• Rapid Traverse Rate Z:

  393 IPM

• Rapid Traverse Rate X:

  551 IPM

• Table Speed: High:

  6.7 - 320 Rpm

• Table Speed: Low:

  1.6 - 76.9 Rpm

• Pull Stud:

  P50-T-Ii

• Turning Tool Shank Size:

  1/1/4" X 1-1/4"

• Ram size:

  8-1/4" X 8-1/4"

• Max. Table torque:

  14,750 Lb. Ft.

• Drill Diameter:

  3-1/8"

• Max Cutting Force:

  6,744 Lbf.

• Max Table Load:

  22,000 Lb.

• Work Height:

  63"

• Max Swing:

  78"

• Max Turning Diameter:

  78"

• X Axis To Right From Table Center:

  69-5/8"

• X Axis To Left From Table Center:

  35-7/16"

• Z Axis Vertical Travel:

  35-1/2"

• Minimum Hole Diameter Allowing Ram Passage:

  13"

• Taper Of Milling Spindle Nose::

  No. 50 (Big Plus)

• Manual Feed Rate X And Z:

  141 IPM

• Cutting Feed Per Rev:

  .0004 - 20 Inch

• Elevating Speed Of Cross Rail:

  14 IPM

• Table Indexing Speed:

  3 Rpm

• Manual Feed Rate (C Axis):

  0 - 800 Deg/Min

• Drive Motor For Turning:

  60 / 75 Hp

• Milling Spindle Motor:

  20 / 25 Hp

• Axis Feed Motor (X / Y / C):

  Servo - 5.6 Hp

• Atc Magazine Motor:

  Servo - 1 Hp

• Cross Rail Elevating Motor:

  7.5 Hp

• Tool Selection:

  Fixed Address, Shortest Path Random

• No. Of Tools Stored:

  24 (Turning Or Milling)

• Max. Lenth Of Tool Holder From Mounting Face:

  35-1/4"

• Max. Weight Of Tool Holder Per Piece:

  110 Lb. / 1pce.

• Max. Weight Of Milling Tool:

  55 Lb / 1pce.

• Max. Milling Tool Diameter:

  5-7/8" - With Other Tools Adjoining

• Max. Milling Tool Diameter:

  9-7/8" - With No Tools Adjoining

• X Axis Positioning:

  .0003" For 20"

• Z Axis Positioning :

  .0003" For 20"

• C Axis Positioning:

  +/- 25 Seconds (Unidirectional Positioning)

• Repeatability (X/Z):

  .0002"

• C Axis Repeatability:

  +/- 10 Seconds

• Read more
