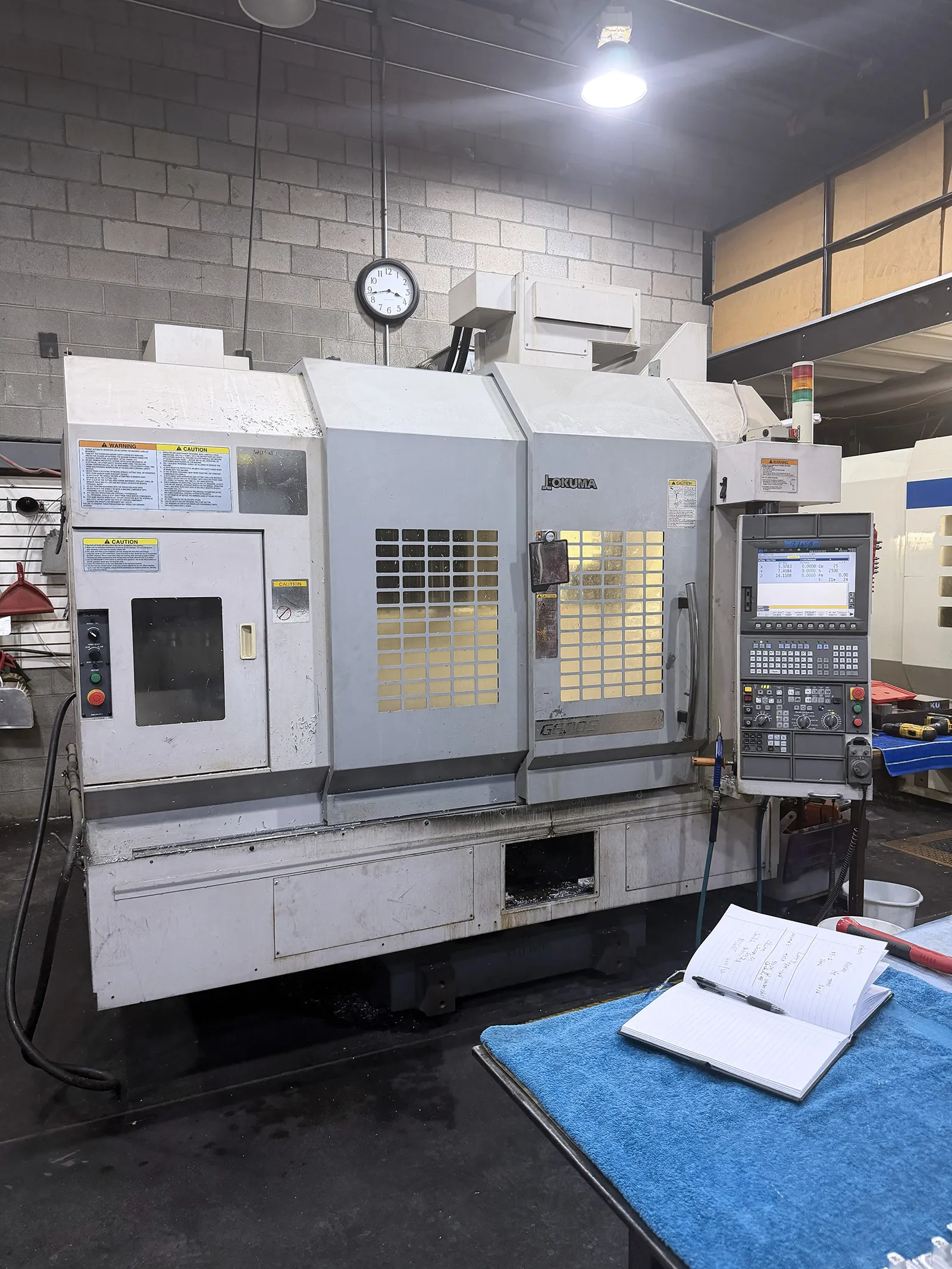

Okuma Genos 560V 2011

machine specifications

• X-axis:

  1,050 mm (41.34 in)

• Y-Axis:

  560 mm (22.05 in)

• Z-axis:

  460 mm (18.11 in)

• Table Size:

  1,300 × 560 mm (51.18 × 22.05 in)

• Max Table Load:

  900 kg (1,980 lb)

• Spindle:

  12,000 rpm

• Power:

  30 hp (25 kW)

• Taper:

  CAT 40 Big Plus® (dual contact for rigidity)

• Rapid Traverse:

• Rapid Traverse (X-Y):

  40 m/min (1,575 ipm)

• Rapid Traverse (Z):

  32 m/min (1,262 ipm)

• TOOL CAPACITY:

  32-tool arm-type ATC (max tool length 11.8", diameter 4.9", weight 18 lb)

• Nose-to-Table Distance:

  5.91" (150 mm) to 24.02" (610 mm)

• Coolant Tank Capacity:

  230 L (60.77 US gal), effective 120 L (31.70 US gal)

• Machine Weight:

  ~8,000 kg (18,260 lb
