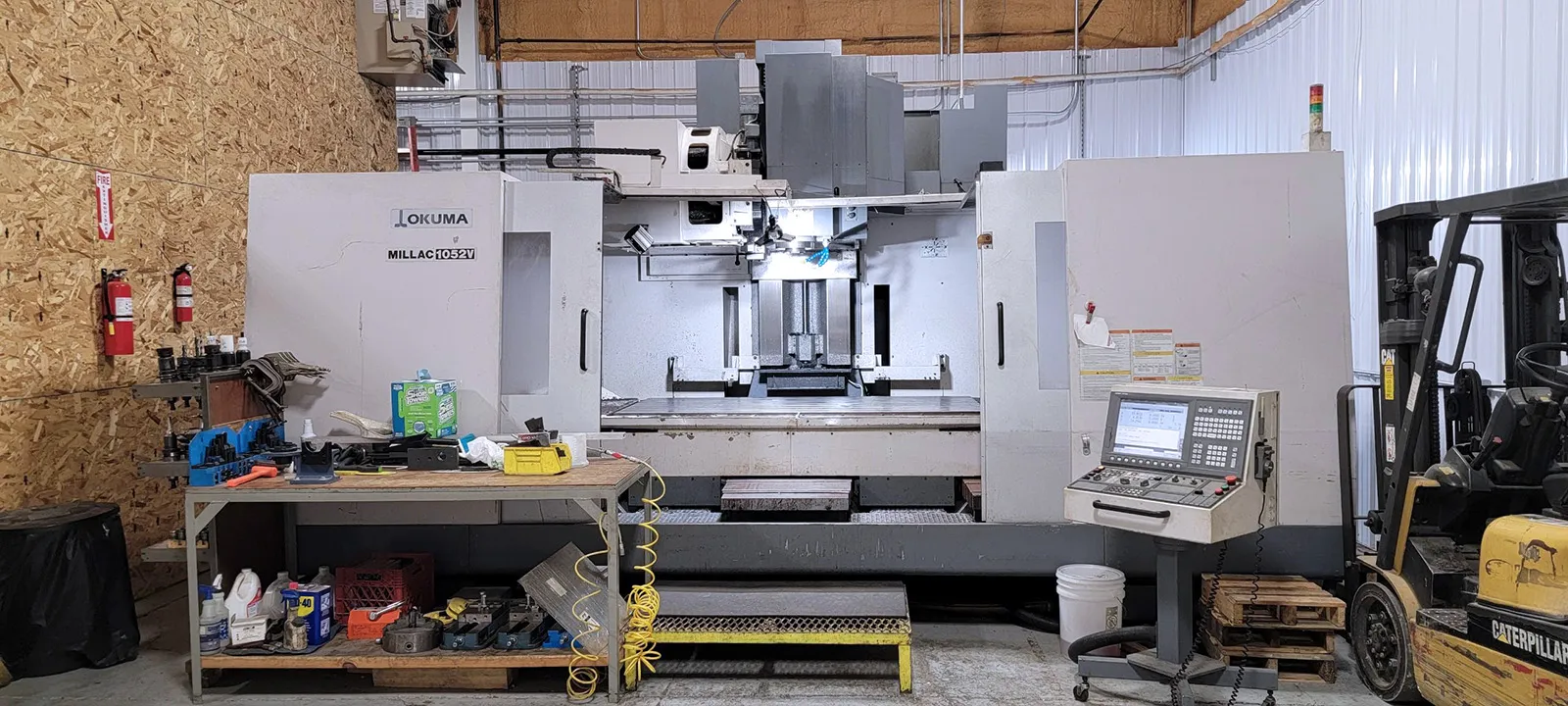

Okuma Millac 1052V 2008

machine specifications

• X Axis Travel:

  80.71"

• Y Axis Travel:

  41.73"

• Z Axis Travel:

  31.5"

• Spindle center to column slide way:

  43.31"

• Table Size:

  86.61" x 41.34"

• Allowable Table Load:

  6,600 lbs.

• Spindle Taper:

  CAT 50

• MAXIMUM SPINDLE SPEEDS:

  6,000 RPM

• A.C. spindle motor (cont. / 30 min.):

  30 HP

• Spindle Nose to Table Top:

  7.87" to 39.40"

• AUTOMATIC TOOL CHANGER:

  36

• ATC tool to tool change time:

  2.7

• ATC chip to chip:

  7 sec

• Max. Tool Diameter:

  7.87"

• Max. Tool Length:

  15.75"

• Max. tool weight:

  44 lbs.

• Rapid traverse rate (X, Y, Z):

  630 IPM

• LEAST COMMAND INCREMENT:

  .0001"

• Approx. Machine Weight:

  44,000 lbs.
