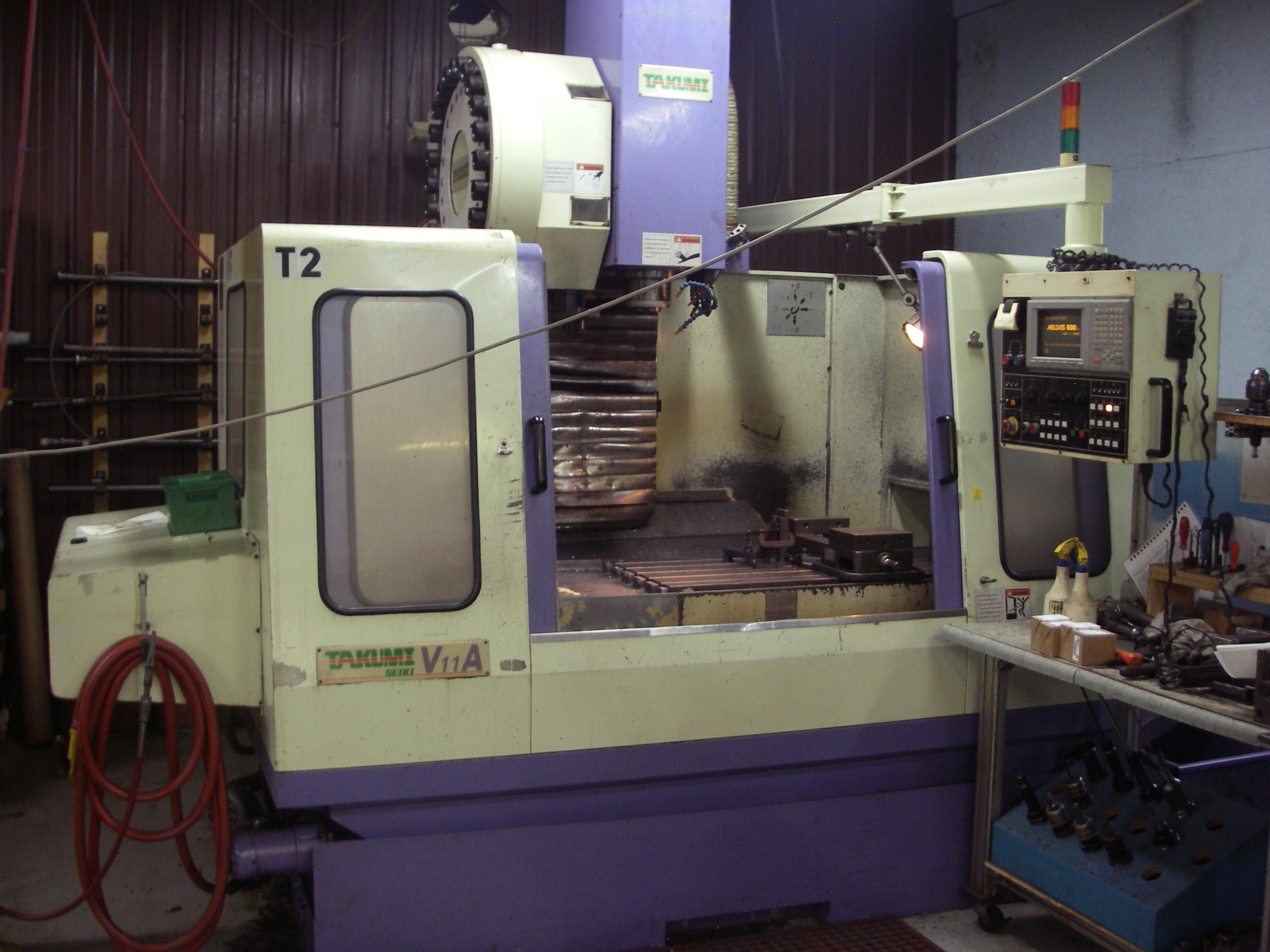

Takumi V11A 1998

machine specifications

• Pallet Size (inches):

  25"

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• Resonator ( Type ):

  55

• Throat Depth:

  9.45"

• Bar Stock Capacity:

  2.0"

• Max Swing (inches):

  17.32"

• Spindle Taper (CAT/BT):

  HSK-463

• Chuck Size (Inches):

  8"

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• X,Y,Z axis (FANUC):

  I0S/I0S/I0S

• X,Y,Z axis (MELCO):

  HA 100/100/100B

• Spindle Speed:

  12,000 RPM

• Spindle Motor (HP):

  10 HP

• Spindle Nose:

  BT-40/BT-50 (Option)

• Spindle Nose to Table Surface:

  5.9" - 31.5"

• Spindle Center to Column Surface:

  22"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Table Load:

  1760 lbs.

• Tool Changer Type:

  60 ATC

• ATC Pull Stud:

  P40T-I

• ATC Capacity:

  24 ARM Type

• ATC Tool Shank:

  BT-40/BT-50

• ATC Max. Tool Length:

  11.8"

• ATC Max. Tool Weight:

  17.6 lbs

• Rapid Traverse Rates (X,Y):

  472.4"/min

• Rapid Traverse Rates (Z):

  393.7"/min

• Cutting Feedrate:

  23.6"/min.

• Drive Motor (30min/cont):

  10 HP

• Tee Slots (W x No.):

  .7" x .2"
