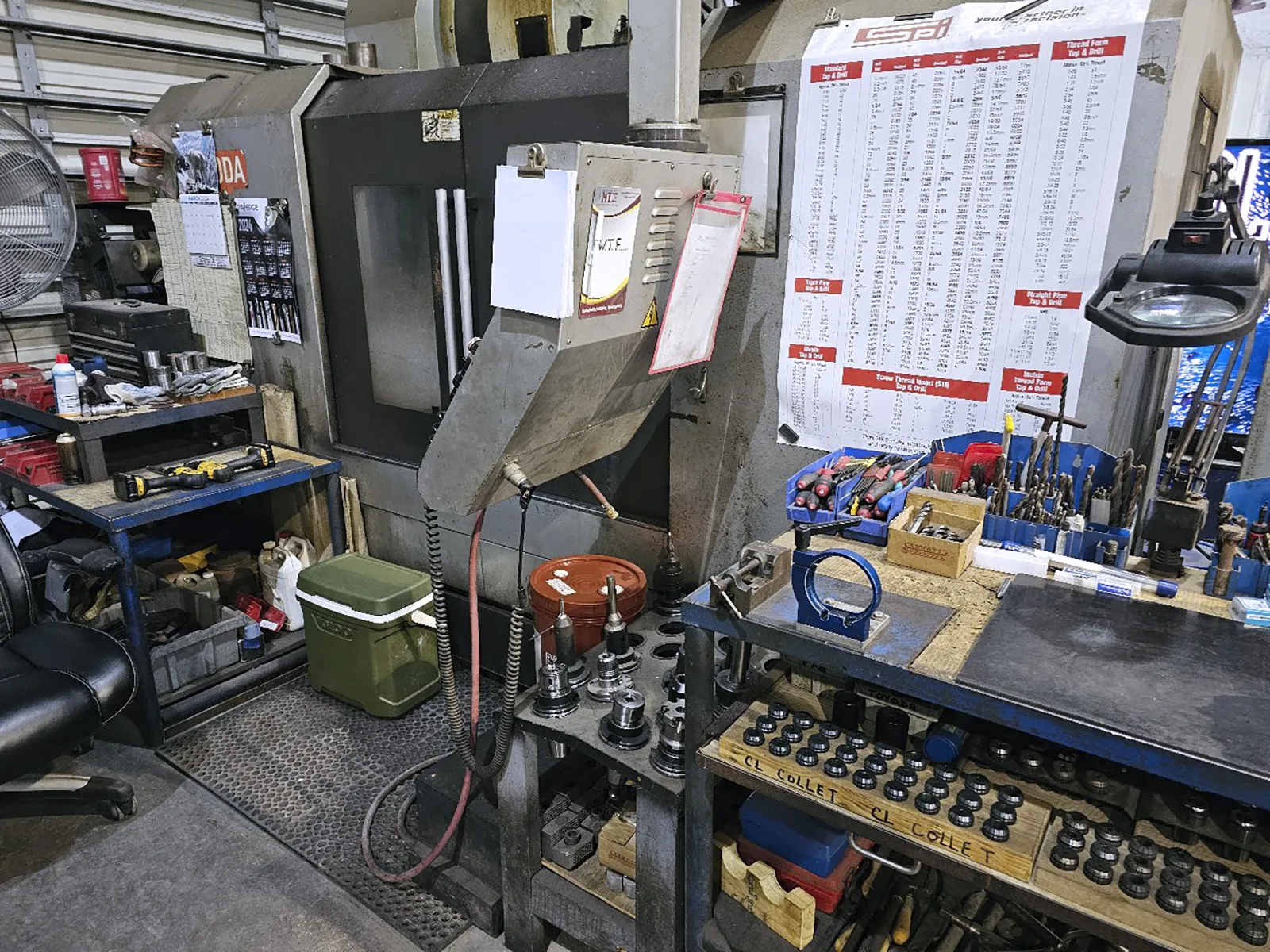

Toyoda Awea BM1200 2006

machine specifications

• Table Size:

  51.22" x 25.61"

• Table Load Capacity:

  2,640 lbs

• X-Axis Travel:

  51.22"

• Y-Axis Travel:

  25.61

• Z-Axis Travel:

  24.03

• Spindle Taper:

  CAT 50

• Spindle Speed:

  60 - 6,000 RPM

• Spindle motor (2 speed geared):

  15 HP

• Spindle Center to Column:

  27.97"

• Distance Spindle Nose to Table Top:

  4.925" - 28.96"

• Tool magazine capacity - side mount:

  24 Position ATC

• Tool change time (chip-to-chip):

  7 seconds

• Maximum Tool Diameter/Length/Weight:

  5.91"/9.856"/15.4 lbs.

• Rapid Traverse Rates X, Y / Z:

  1182 IPM / 945 IPM

• Cutting Feedrates:

  591 IPM
