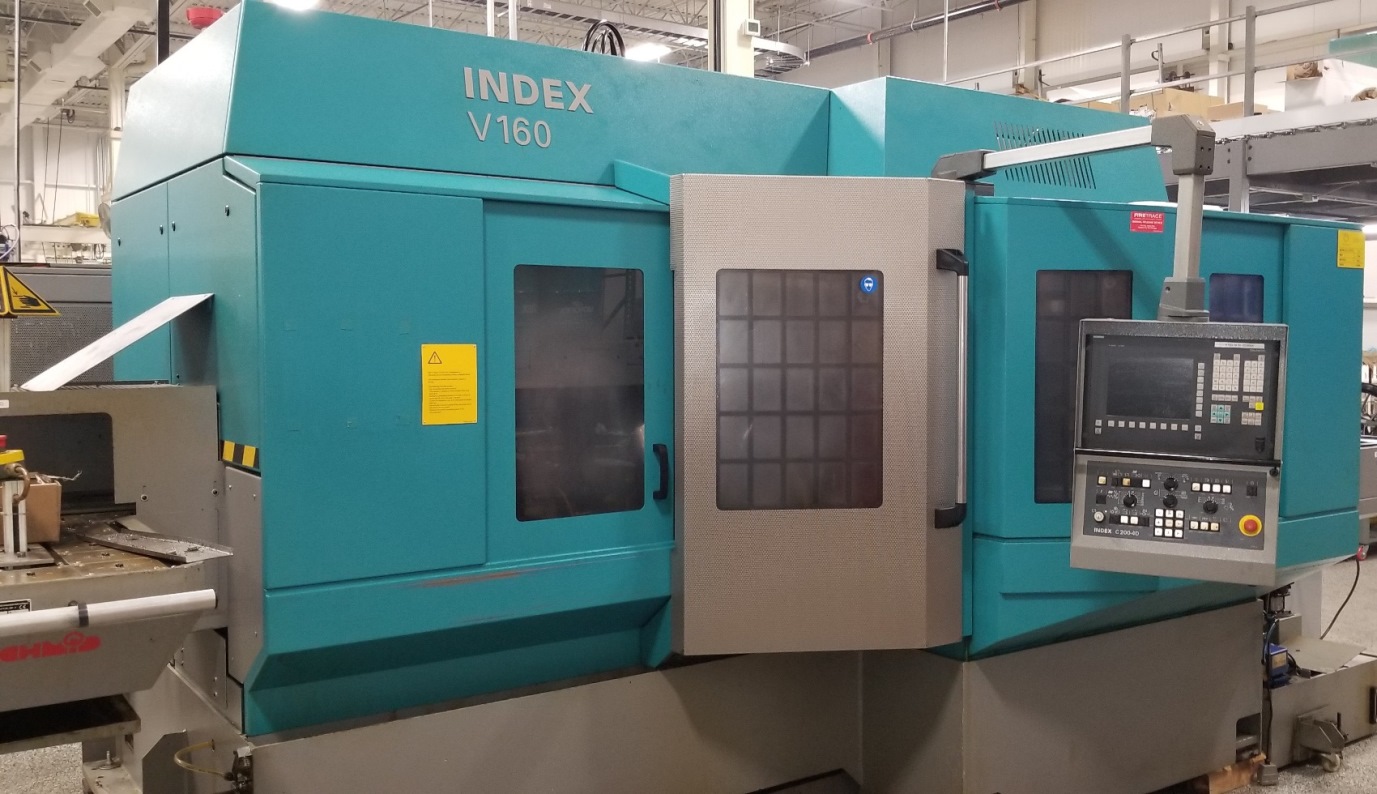

Index V160G 2010

machine specifications

• Vertical Travel of Ram:

  4444

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• Resonator ( Type ):

  55

• Spindle Speed:

  12,000 RPM

• Spindle Taper (CAT/BT):

  HSK-463

• Z - Axis Travel (inches):

  14.7" / 375mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• X - Axis Travel (inches):

  15.7" / 400mm

• Chuck Size (Inches):

  8"

• Swing Diameter:

  14"

• Bar Diameter:

  2.6"

• Spindle diameter front bearing:

  4.3"

• Spindle head ISO 702/1 Size:

  5.5"

• Chuck Diameter:

  6.3" / 7.9"

• Speed:

  15 - 30 SPM

• Power at 100%:

  27 HP

• Power at 40%:

  36 HP

• Torque at 100%:

  79 (ft lbs)

• Torque at 40%:

  109 (ft lbs)

• Alignment and indexing unit degrees:

  2.5

• C-Axis Resolution:

  0.001 Deg.

• Number of Stations:

  12

• Slide travel X / rapid traverse / feed force:

  37.6" / 3,152 / 1,798

• Slide travel Y / Rapid Traverse / Feed Force:

  4.7" / 296 / 2,248

• Slide travel Z / Rapid Traverse / Feed Force:

  10.2" / 1,576 / 2,248

• Indexing Time:

  0–90° 5.0 s

• Indexing time for 6 stations:

  0.4

• Tool drive speed:

  6,000 RPM

• Turret Power at 25%:

  8.5 HP

• Turret Torque at 25%:

  10.5 HP

• Read more
