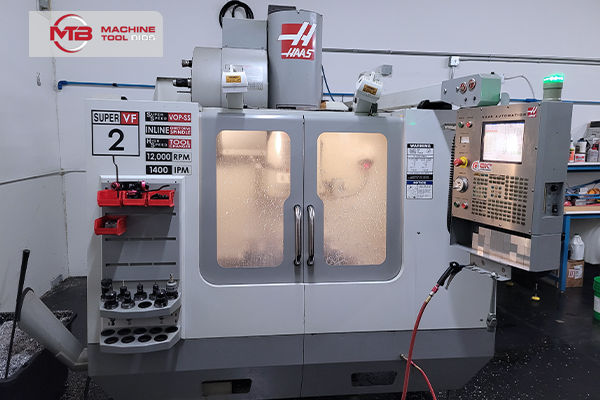

Haas VF-2SS 2005

MACHINE SPECIFICATIONS

• X Axis Travel:

  30"

• Y Axis Travel:

  16"

• Z Axis Travel:

  20"

• Rapid Rate X Axis:

  1,400 IPM

• Rapid Rate Y Axis:

  1,400 IPM

• Rapid Rate Z Axis:

  1,400 IPM

• Table Size:

  36" x 18"

• Max Table Load:

  1,500 LBS

• Spindle Motor:

  30 HP

• Spindle Speed:

  12,000 RPM

• Spindle Taper:

  40 CT

• Tool Changer:

  24 ATC

• Max Cutting:

  833 ipm

• MAX WEIGHT:

  1500 lb

• Max Thrust X,Y, & Z:

  1995 lbf/1995 lbf/3085 lbf

• Chip to chip:

  3.6 s

• Coolant Capacity:

  55 gal

• Amps:

  3 Phase

• Hertz:

  50/60

• Voltage:

  208/230

• Full Load:

  80 Amps

• Largest Load:

  70 Amps

• Dimensions:

  106" x 101" x 101"

• Weight:

  7,800 lbs
