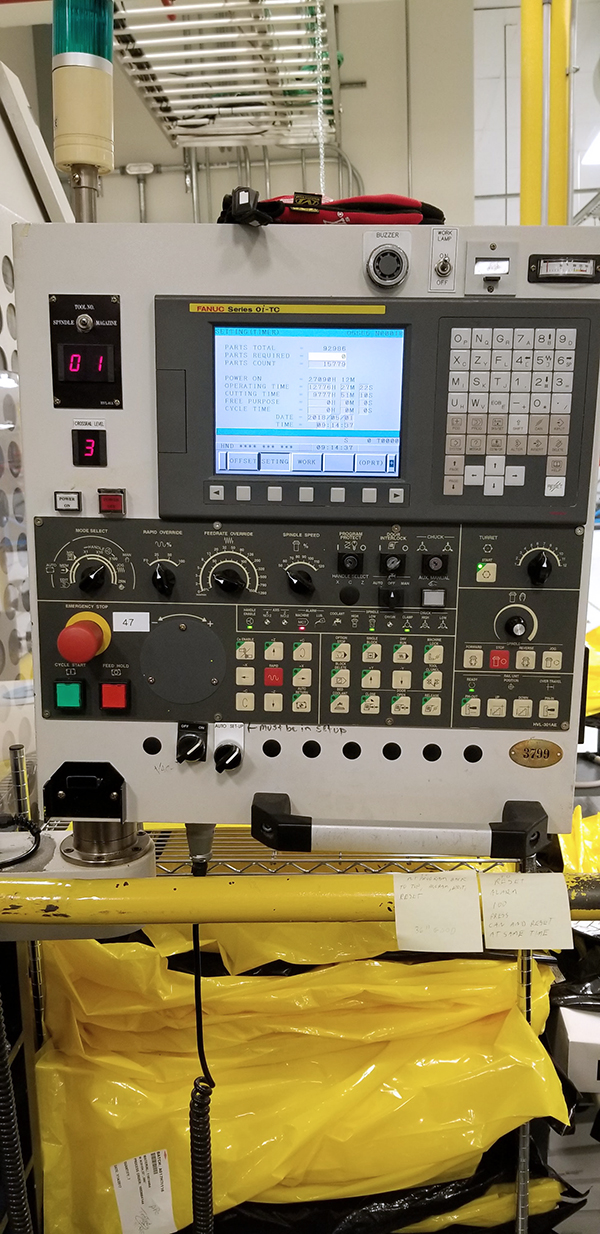

Honor Seiki VL-125C 2008

machine specifications

• Throat Depth:

  9.45"

• Max Swing (inches):

  17.32"

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Speed:

  12,000 RPM

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Table Size - L:

  61"

• Table Size - W:

  30"

• Tool Changer Type:

  60 ATC

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Wire Traveling Speed:

  22

• Resonator ( Type ):

  55

• Table Diameter:

  49.21"

• Max Turning Diameter:

  21.7"

• Chuck Size (Inches):

  8"

• Spindle Motor (HP):

  AC37/45 kw

• Max Turning Height:

  49.21"

• Distance from Ram to Table:

  25.59" - 57.08"

• Max Workpiece Weight:

  11,023 lbs

• Cross Rail Travel:

  31.49"

• Spindle RPM:

  3-300 RPM

• 2 Speed Heavy Duty Gear Box:

  2 Steps

• Spindle Torque:

  11,000 ft-lbs

• Spindle Diameter:

  22.84"

• Spindle Manufacturer:

  Timken

• Height of Spindle Face from Floor:

  36.4"

• Number of Tools:

  12

• Tool Size:

  0 32mm / 1.25"

• Cross Section of Ram:

  8.66" x 8.66"

• Rapid Traverse Rate (X,Z):

  393 IPM

• Cutting Feed Rate:

  0.001 - 19.69" rev

• Horizontal Travel (X-Axis):

  7.87" / +37.40"

• Vertical Travel (Z Axis):

  35.4"

• Feed Override:

  0-150%

• X-Axis Ball Screw (dia x pitch):

  63mm x 10mm

• Z-Axis Ball Screw (dia x pitch):

  63mm x 10mm

• X- Axis Axial Thrust:

  3,410 Lbs

• Positioning Accuracy:

  ±.0002" (Full Stroke)

• Repeatability k:

  ±.0001"

• Feed Motor (X/Z Axis):

  7.0/7.0 kw
