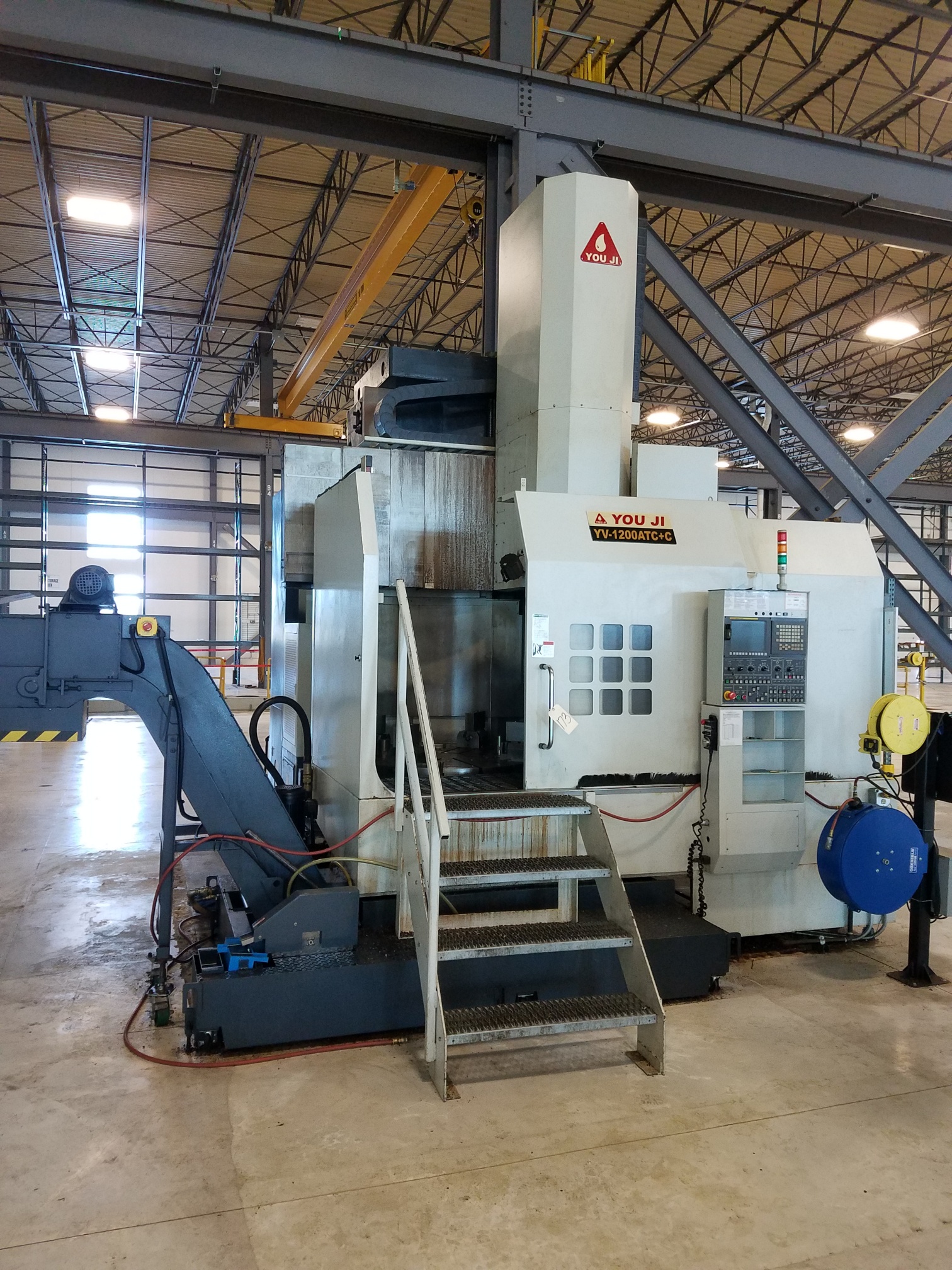

You Ji YV-1200-ATC+C 2012

machine specifications

• Standard Turning Diameter:

  47.2"

• Max Swing:

  63"

• Max Turning Diameter:

  55.1"

• Max Cross Travel:

  3.94" ; + 34.5" (X-Axis)

• Max Longitudinal Travel:

  35.4" (Z-Axis)

• Maximum Cross Rail Travel (Manual Control):

  31.5”

• Max Cutting Height:

  50”

• Manual Chuck:

  49” 4-Jaw Independent

• Ram Distance to Table (Max / Min):

  60” / 0”

• Spindle Motor:

  60 HP

• Spindle RPM:

  2-350

• Spindle Load:

  11,000 lbs

• Spindle Bearing Diameter:

  24” O.D. / 18” I.D.

• Spindle Torque:

  9,220 ft./lbs.

• Tool Positions:

  16

• ATC Type:

  Umbrella / Electric

• Tool Mounting:

  #50 taper

• Tool Changer Time:

  30 Seconds

• O.D. tool shank size:

  1.25”

• Rapid Traverse Rate:

  24 m/min

• I.D. Tool Shank Size:

  2.5"

• Cutting Feedrate:

  1- 24,000 mm/min / 1- 944"

• Maximum Single Tool Weight:

  110 lbs.

• Positioning Accuracy:

  ±2 WS (Table)

• Maximum magazine capacity:

  800 lbs.

• Repeatability:

  ±0.0015 mm
