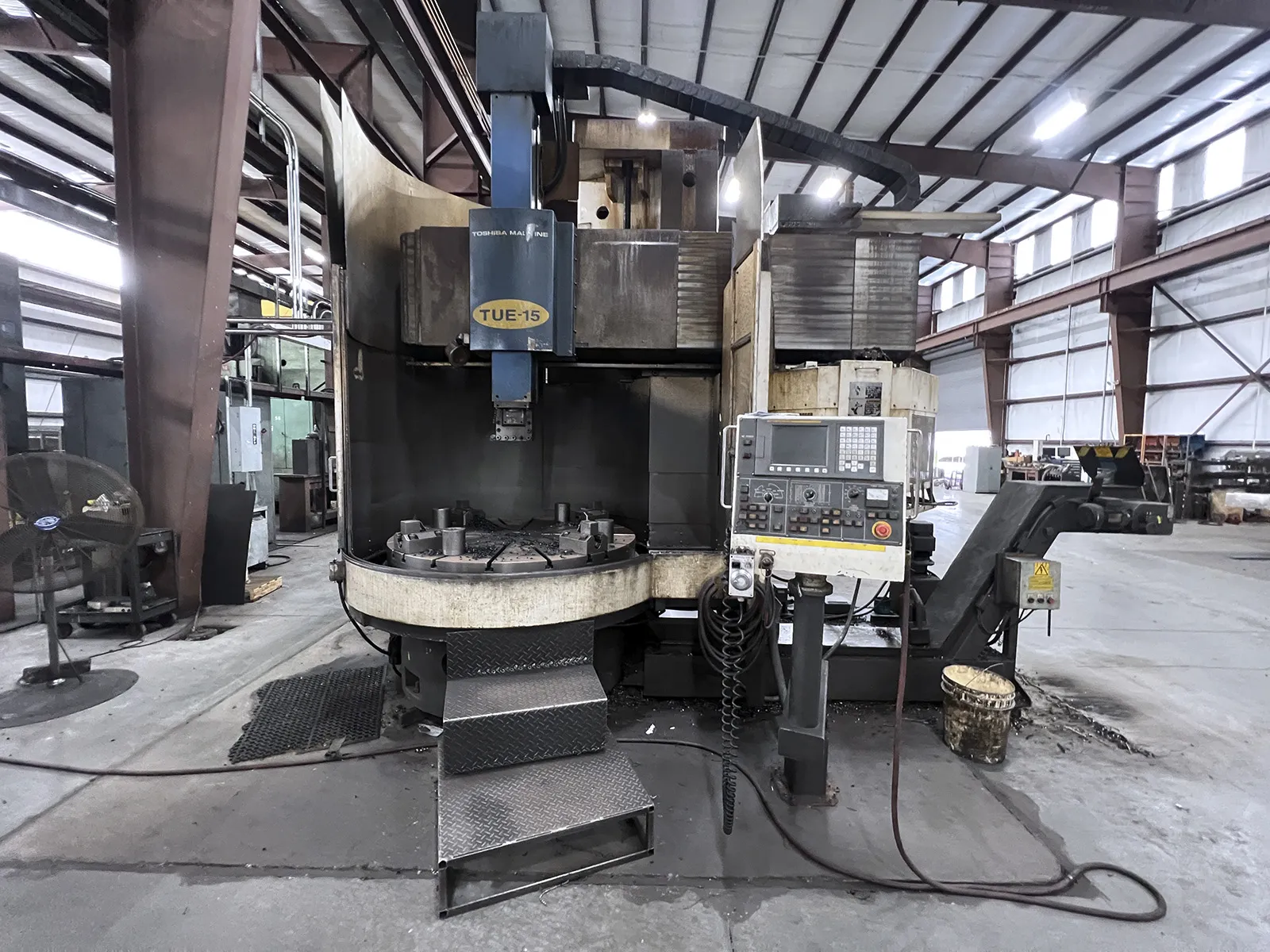

Toshiba TUE-15 2007

machine specifications

• Table Diameter:

  59.06" (1,500 mm)

• Swing:

  70.87" (1,800 mm)

• Maximum Cutting Height:

  59.06" (1,500 mm)

• Max Height Table to Rail Head:

  67.72" (1,720 mm)

• Max Load on Table:

  17,600 lbs (8,000 kg)

• Table Speed:

  8–300 RPM

• X Axis Travel:

  -3.94" to 43.31" (‑100 to 1,100 mm)

• Z Axis Travel:

  35.43" (900 mm)

• X Axis Rapid:

  393.70 in/min (10,000 mm/min)

• Z Axis Rapid:

  295.27 in/min (7,500 mm/min)

• Feed Rate:

  0.04–78.74 in/min (1–2,000 mm/min)
