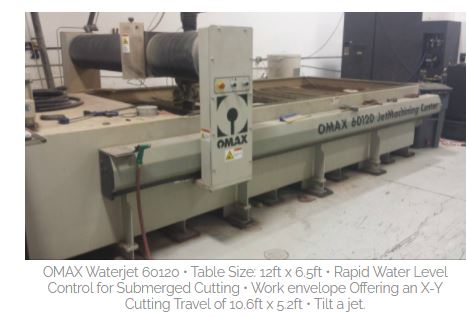

Omax 60120 2019

machine specifications

• Cutting Head:

  Tilt A Jet

• Z-Axis Travel:

  8”

• Table Size:

  12ft 0” x 6ft 5”

• MATERIAL LOAD CAPACITY:

  400 lbs/sq ft

• Motor Power:

  40 HP

• Max Jet Power:

  60,000 PSI

• Cutting X-Axis Travel:

  126"

• Cutting Y-Axis Travel:

  62"

• X-Axis Table Size:

  144"

• Y-Axis Table Size:

  77"

• Linear Axis Accuracy:

  ±0.001"

• Linear Axis Repeatability:

  ±0.001"

• Ballbar Circularity:

  ±0.0025"

• Over one foot travel:

  +/-0.003"

• Squareness:

  0.002" per foot

• Straightness:

  0.003" per foot

• Backlash:

  0.0007" max

• Speed:

  180 in/min
