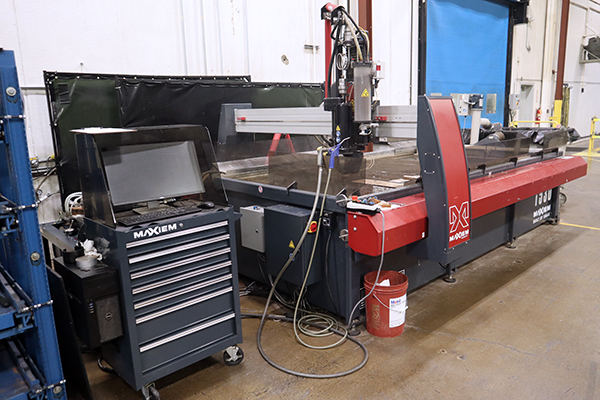

Omax Maxiem 1530 2016

machine specifications

• PSI:

  50,000

• Table Size:

  12' 2" x 5' 8" (3,708 mm x 1,727 mm)

• Cutting Envelope:

  10ft 0” x 5’ 2” (3048 mm x 1575 mm)

• Z-Axis Travel:

  12" (305 mm)

• X-Y Cutting Travel:

  10' 0" x 5' 2" (3,048 mm x 1,575 mm)

• Speed:

  500 in/min (12,700 mm/min)

• Linear Position Accuracy:

  ±0.003" (±0.076 mm)

• Repeatability:

  ±0.001" (±0.025 mm)

• Material Support Slats:

  34 4" x 14Ga Galvanized Steel (102 mm x 2 mm)

• Max Material Weight:

  300 lbs/sq ft (1,465 kg/sq meter)

• Electrical Requirements:

  3-Phase, 380-480 VAC ±10%, 50-60 Hz

• Noise Level:

  Below 80 dBA at one meter for submerged cutting

• FOOTPRINT (WITH PUMP & CONTROLLER):

  14' 1" x 10' 10" (4,293 mm x 3,302 mm)

• HEIGHT (WITH WHIP PLUMBING):

  10' 6" (3,200 mm)

• OPERATING WEIGHT:

  15,700 lb (7,121 kg)

• Weight (tank empty):

  4,000 lb (1,814 kg)
