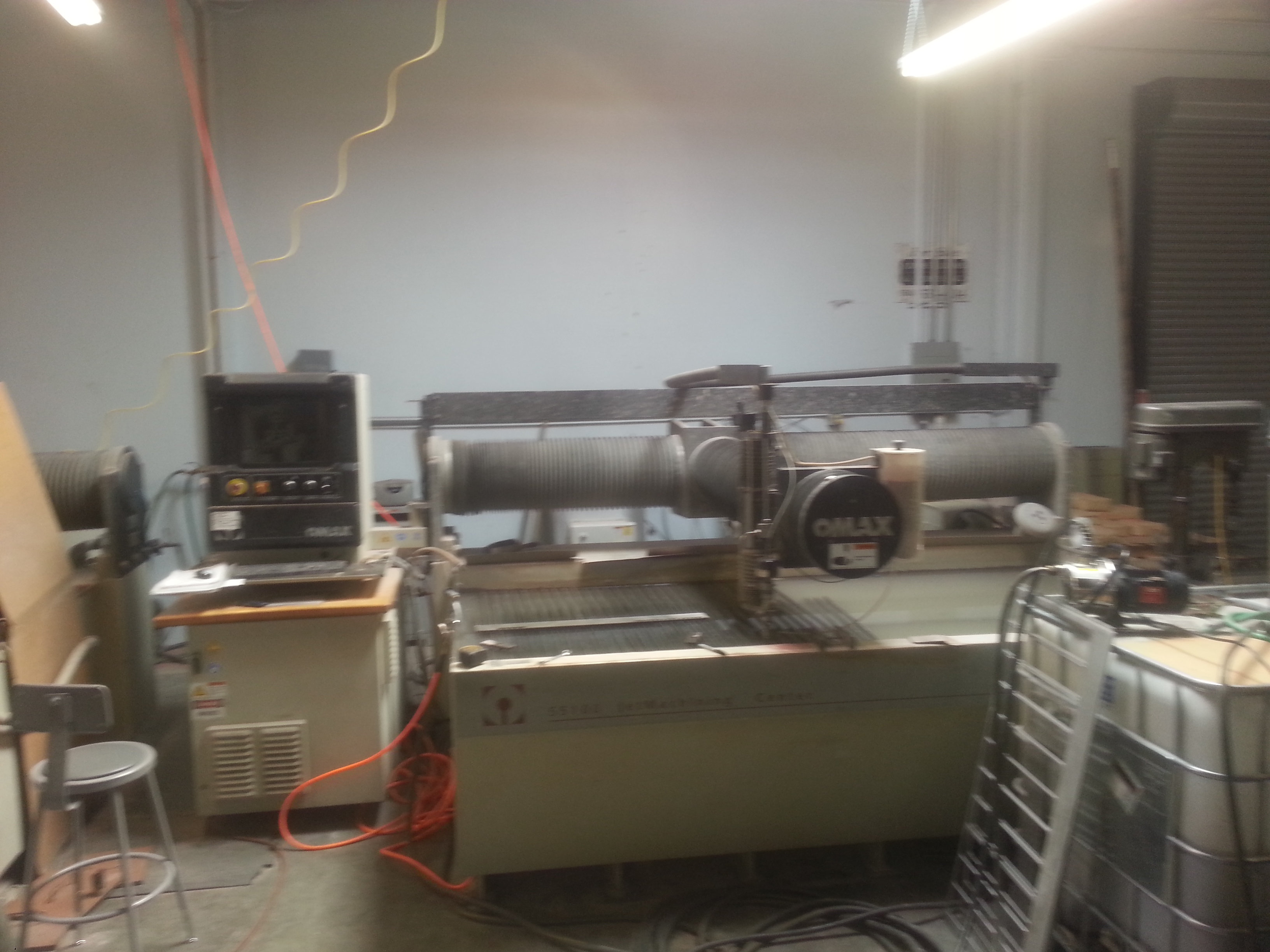

Omax 55100 2008

Fully Functional Under Power Specs Seller is confirming the following specs OMAX 55100 JETMACHINING® CENTER- 2008 MODEL • MOTORIZED Z AXIS • 600 LB ABRASIVE FEED SYSTEM • CHILLER 24000 BTU/HR, 460V, 3 PH • WATER SOFTENER • 40 HP, 55,000 PSI • TABLE SIZE OF 126" X 65" • A CANTILEVER Y-AXIS ON A BRIDGE X-AXIS, WITH A MOTORIZED Z-AXIS ALLOWS FOR MATERIAL LOADING FROM THREE OPEN SIDES • A WORK ENVELOPE OFFERING AN X-Y CUTTING TRAVEL OF 100" X 55" DRIVE DESCRIPTION: BALL SCREW BOTH X AND Y CARRIAGES RIDE ON RIGIDLY MOUNTED PRECISION GROUND LINEAR RAILS. THE CARRIAGES MOVE PRECISION PRELOADED BALL SCREWS DRIVEN BY STEEL REINFORCED TIMING BELTS, MANEUVERED BY BRUSHLESS DIGITAL SERVO MOTORS PROVIDING POSITION FEEDBACK. EACH STEP COMMAND IS SENT TO A SERVO AMPLIFIER MOVES THE CARRIAGE APPROXIMATELY 0.0005" (0.013 MM). THE DRIVE MECHANISM IS SURROUNDED AND SEALED IN URETHANE BELLOWS THAT PREVENT WATER AND ABRASIVE PARTICLES FROM ENTERING AND SEVERELY DAMAGING CRITICAL MECHANICAL COMPONENTS. ACCURACY OF MOTION-PER NEW MACHINE SPECIFICATIONS • OVER ONE FOOT TRAVEL +/-0.003" • REPEATABILITY +/-0.0013" • SQUARENESS 0.0013" PER FOOT • STRAIGHTNESS 0.0017" PER FOOT • BACKLASH 0.0007" MAX MACHINE DIMENSIONS • WEIGHT (TANK EMPTY) 8,000 LBS • HEIGHT 118" • OPERATING WEIGHT 22,000 LBS Work Envelope/Cutting Table • Cutting X-Axis Travel* 100" • Cutting Y-Axis Travel* 55" • X-Axis Table Size 126" • Y-Axis Table Size 65" • Material Supports Slats Size 4" x 1/8" Galvanized Steel
