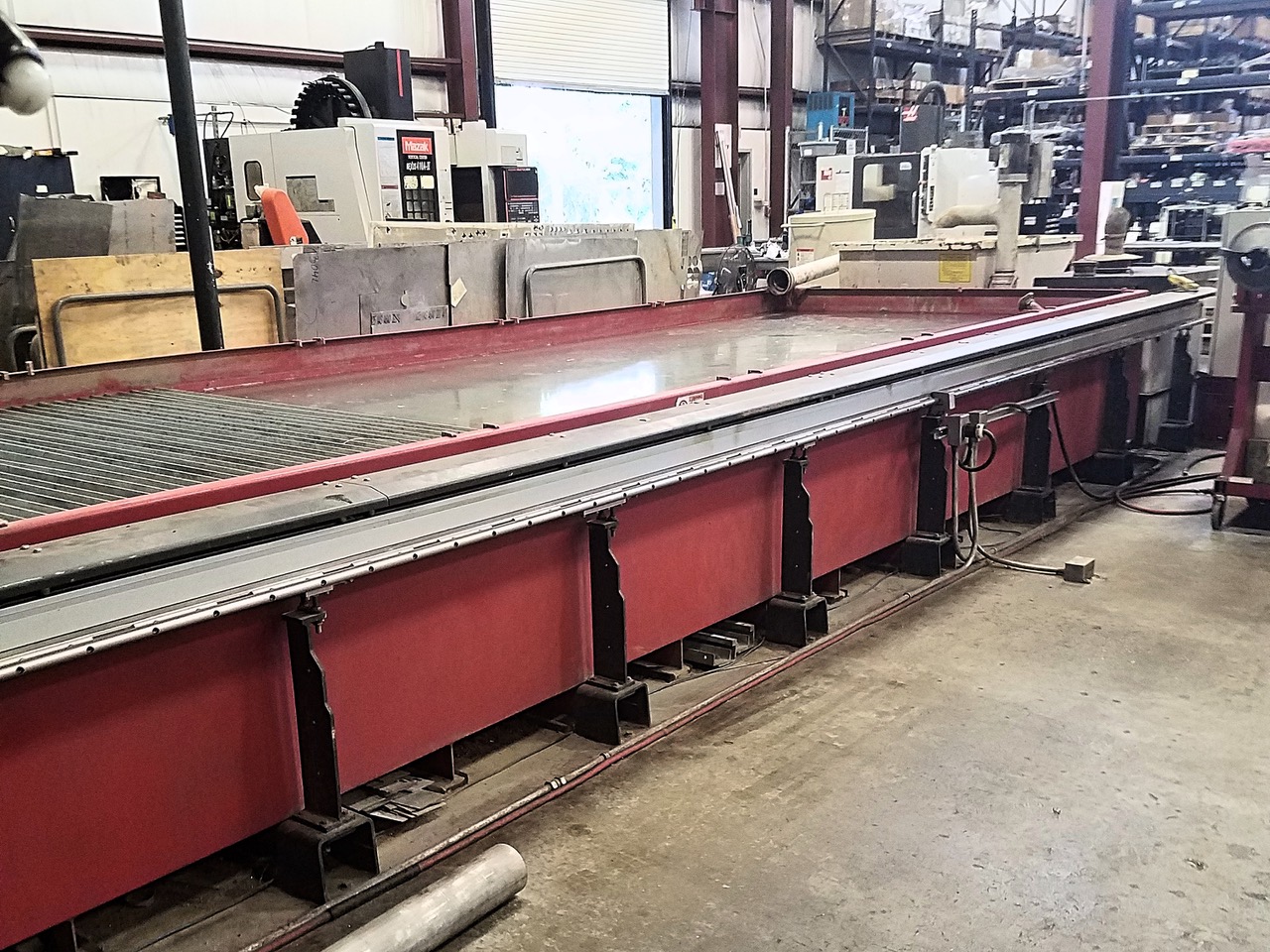

Maxiem 2080 2014

machine specification

• Z - AXIS TRAVEL (INCHES)
• 12"

• TABLE SIZE - W
• 7'0"

• TABLE SIZE - L
• 27'10"

• SPEED
• 15 - 30 SPM

• X-Y CUTTING TRAVEL
• 27’2” x 6’7”

• MATERIAL SUPPORT SLATS
• 80 4" x 14Ga Galvanized Steel

• MAXIMUM LOAD
• 300 lbs/sq ft

• ELECTRICAL REQUIREMENTS
• 3-Phase, 380-480 VAC ±10%

• SPEED
• 500 IPM

• LINEAR POSITIONAL ACCURACY
• ±0.003”

• REPEATABILITY
• ±0.001”

• FOOTPRINT
• 31’3” x 12’2”

• WEIGHT (TANK EMPTY)
• 8,700 lbs

• HEIGHT
• 10’4”

• OPERATING WEIGHT (TANK FULL)
• 46,000 lbs

machine equipped with

• A-JET 5-AXIS CUTTING HEAD WITH SMART TAPER CONTROL
• STANDARD ROTARY AXIS - 11 FT-LB (15N*M) CONSTANT TORQUE
• HIGH TORQUE ROTARY AXIS - 190 FT-LB (258N*M) CONSTANT TORQUE
• M40 - 40 HP / 50
• 000 PSI PUMP (1
• 506 HOURS)
• BULK ABRASIVE DELIVERY ASSEMBLY (600 LBS)
• TERRAIN FOLLOWER/A-JET
• AUTO TILT Z-AXIS
• VARIABLE SPEED SOLID REMOVAL SYSTEM
• PREMIUM LICENSE INTELLI-MAX SOFTWARE SUITE
• WATER-ONLY MAXJET 5 NOZZLE
• SPLASH SHIELD KIT
• LAMINAR FILTER YES
• ERROR MAPPING KIT
