Tec Weld Automation / Fanuc Fanuc ARC Mate 120iB 10L 2007

machine specification

• PAYLOAD
• 10.00kg

• H-REACH
• 1885.00mm

• ROBOT MASS
• 220.00kg

• NUMBER OF AXES
• 6

machine equipped with

• ROBOT MOTION SPEED:
• J1 165 °/S (2.88 RAD/S)
• J2 165 °/S (2.88 RAD/S)
• J3 175 °/S (3.05 RAD/S)
• J4 350 °/S (6.11 RAD/S)
• J5 340 °/S (5.93 RAD/S)
• J6 520 °/S (9.08 RAD/S)
• ROBOT MOTION RANGE:
• J1 ±170°
• J2 +160° - 90°
• J3 +285° - 170°
• J4 ±200°
• J5 ±140°
• J6 ±450°
• LINCOLN POWERWAVE 455M WELDER

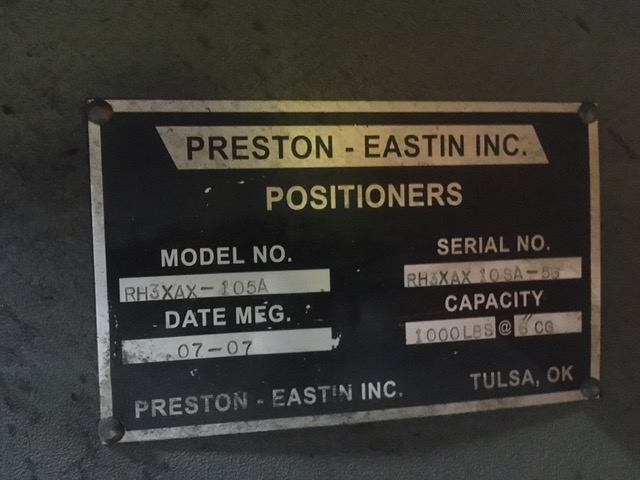

• PRESTON EASTON RH3XAX-105A POSITIONER WITH 2 HEAD AND TAILSTOCKS FOR 180-DEGREE ROTATION AND 1000 LBS CAPACITY
• FANUC CNC CONTROLS
• FANUC HANDHELD CNC CONTROL
• GUARDING AROUND THE WORK CELL AND LIGHT CURTAINS
