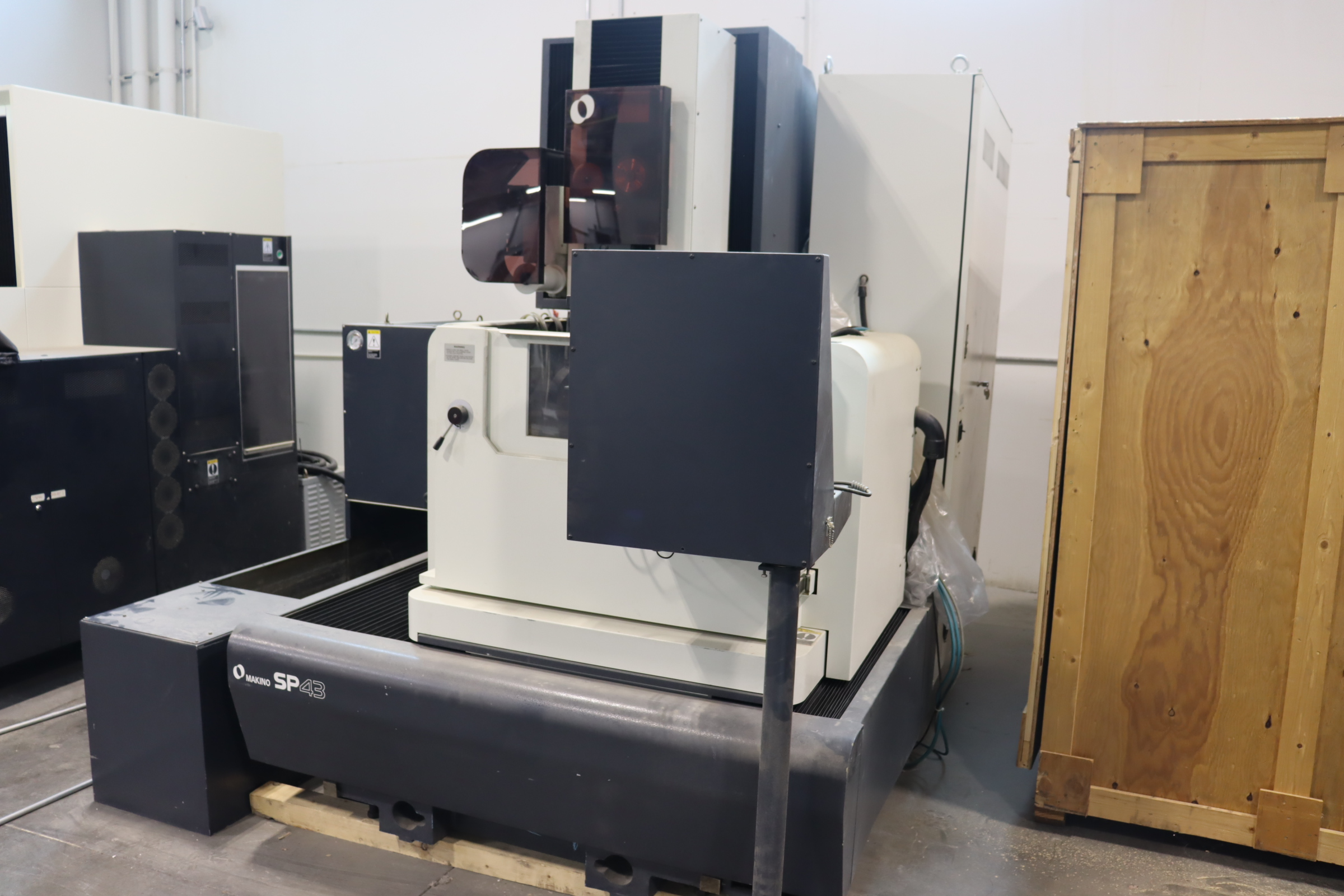

Makino SP43 2007

machine specifications

• X-Axis Travel:

  450mm (17.72")

• Y-Axis Travel:

  300mm (11.81")

• Z-Axis Travel:

  320mm (12.59")

• U/V Axis Travels:

  +/-101mm (3.98")

• Wire Guide Type:

  V-Flat Diamond

• Rapid Traverse Rate (X,Y,Z):

  2000mm/min.

• Jog Feedrate:

  50, 150, 600mm/min.

• Position Accuracy:

  +/- 0.015mm

• Wire Electrode Diameter:

  0.2mm, 0.25mm, 0.3mm

• Repeatability:

  +/- 0.015mm

• Wire Feedrate:

  0, 50-360mm/s

• Table Size:

  28.7" x 22.8"

• Wire Tension:

  2-20N (.02-2.0 kgf)

• Load Capacity:

  800kg (1,763 Lbs.)

• Wire Reel Weight:

  20Kg (44 Lbs.)

• Floor to Table Surface:

  970mm (38.2")

• Rapid Traverse Rate U,V-Axis:

  1000mm/min.

• Servo Feed Rate:

  0.01 - 50mm/min.

• Automatic Wire Threading Unit:

  Water Jet

• Prepared Hole Diameter - Minimum:

  1.4mm/100mm Plate Thickness

• Prepared Hole Diameter - Minimum:

  0.5mm/30mm Plate Thickness

• Prepared Hole Diameter - Minimum:

  0.20mm, No Slit,Both Nozzle Closed

• Threading Time:

  15 Sec. / 30mm Plate Thickness

• Threading Time:

  Retry 3, 0.20mm, No Angle Cut

• Taper Angle (Mechanical) - Maximum:

  +/-35 Degrees 100mm Plate Thickness

• Dielectric Supply Tank:

  220 Gallons

• Clean Tank:

  30 Gallons

• Dirty Tank:

  190 Gallons

• Axis Feed Motors - X,Y-Axis:

  0.5kw

• Axis Feed Motors - U,V,Z-Axis:

  0.4kw

• Flushing Pump Motors:

  .(2) 3.0kw

• Filter Pump Motor:

  0.55kw

• Tank Filling Pump Motor:

  1.6kw

• Circulation Pump Motor:

  0.37kw

• Dielectric Cooler Compressor:

  1.7kw

• Machining Current - Maximum:

  55A
