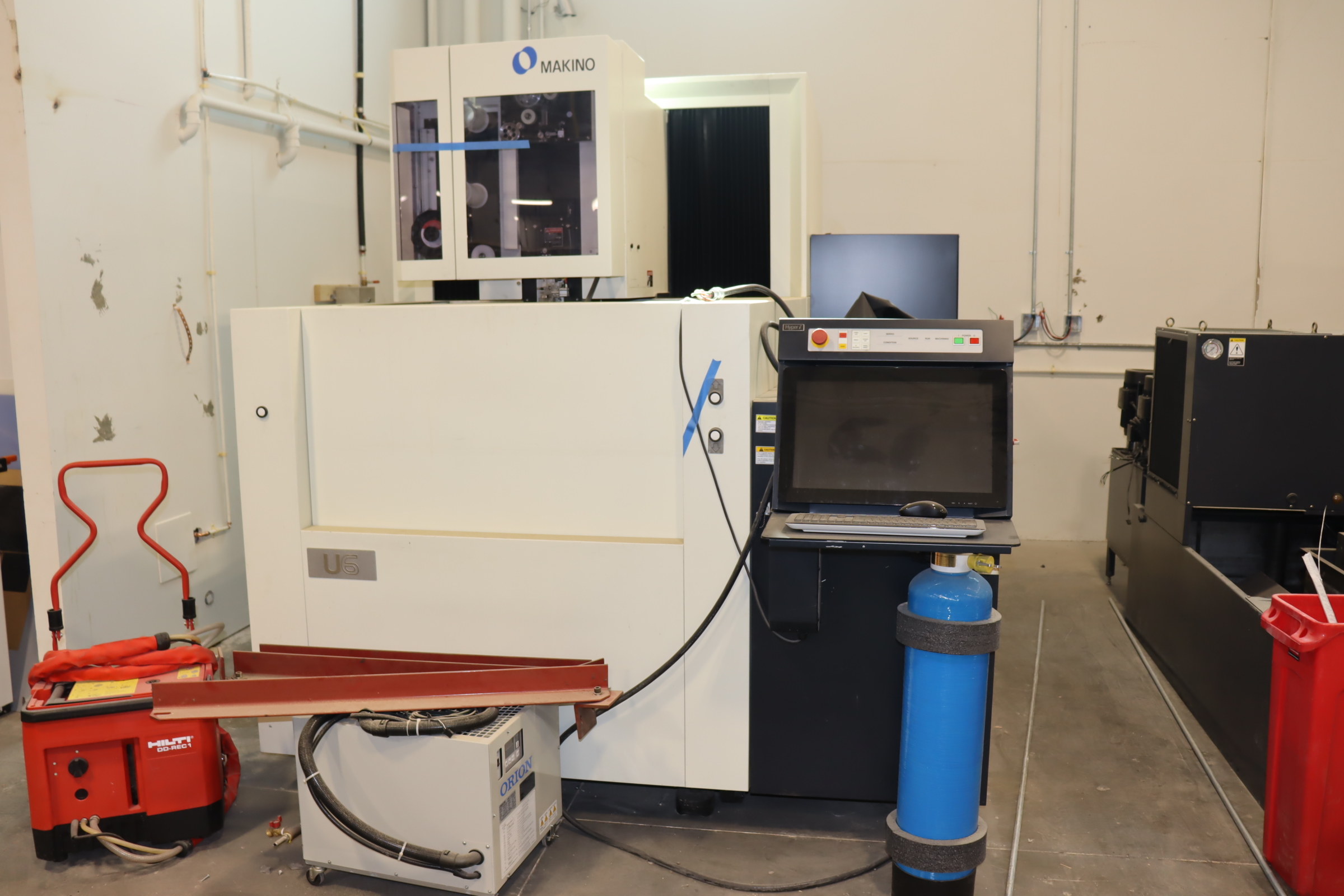

Makino U6 2019

machine specifications

• X-Axis Travel:

  25.59"

• Y-Axis Travel:

  17.71"

• Z-Axis Travel:

  16.53"

• U/V Axis Travels:

  ±2.95”

• Wire Electrode Size Range:

  0.004” ~ 0.012" Ø

• Rapid Traverse (X, Y & Z ):

  78.74 in/min

• Work Table Height:

  39.37"

• Work Table Size:

  35.8" x 28.0" (3 Sided U-Shape Table)

• Work Tank Size:

  42.13" x 34.65" x 17.91" (Inside dimensions)

• Max Load on Table:

  3,306 lbs.

• Taper Capability with AWT:

  ±15°/3.94” thick

• Servo System:

  Direct Drive PWM Digital AC Servo

• Servo Feedrate:

  0.00039~1.97”/min

• Simultaneous Controlled Axes:

  5 Axes Total / 4 Axis Simultaneous

• Least Programmable Increment:

  0.00001”

• X/Y Ball Screw Size (Class C5):

  1.26” Ø

• U/V/Z Ball Screw Size (Class C5):

  0.98” Ø

• Rotary Encoder Feedback (X/Y/U/V/Z):

  0.000004”

• Glass Scale Feedback (X/Y):

  0.000002”

• X/Y-Axes (Full Stroke):

  ± 0.000059"

• X/Y-Axes (Full Stroke):

  ± 0.000039"

• Dynamic Shape Precision:

  ±0.00019”

• Roundness TIR (20mmØ x 40mm thick):

  0.00019”

• Best Finish in Tool Steel (Standard):

  10 ?in Ra

• Best Finish in Carbide (Standard):

  6 ?in Ra

• Best 3 Pass Finish in Steel (HyperCut):

  16 ?in Ra

• Best Finish (Crystal Circuit Option):

  3~4 ?in Ra
