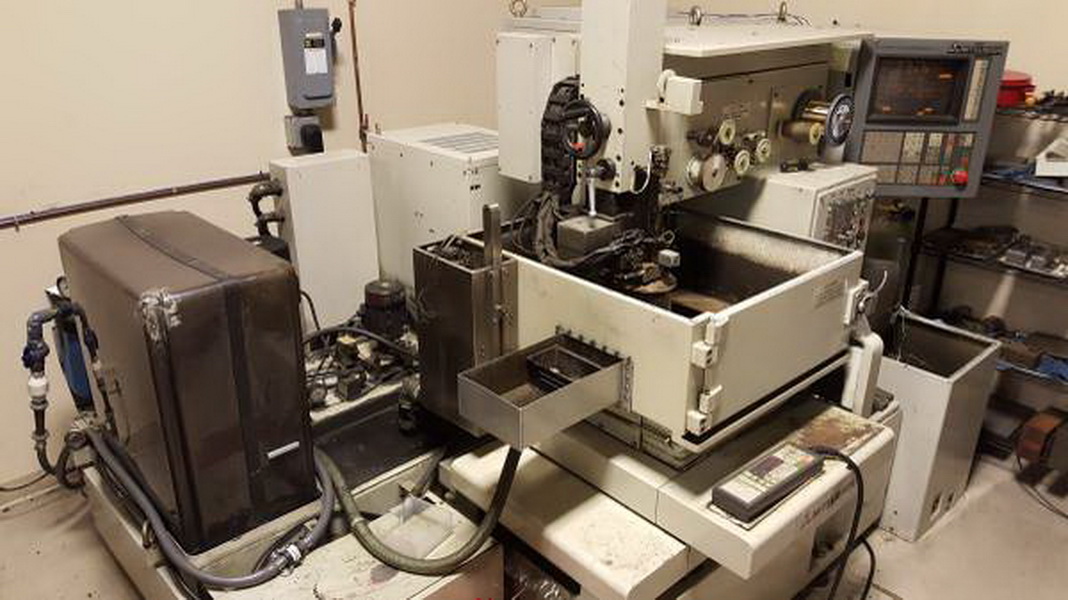

Mitsubishi DWC-90SB 1991

machine specifications

• Wire Traveling Speed:

  22

• Chuck Size (Inches):

  8"

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Speed:

  12,000 RPM

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Table Size - W:

  30"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Resonator ( Type ):

  55

• Table Size - L:

  61"

• Machining Travels ( U, V ):

  1.0" x 1.0"

• Taper Capacity:

  +/- 12 Deg in 2.36"

• Max Workpiece Dimensions:

  17.7" x 13.7" x 6.6"

• Max Workpiece Weight:

  264 Lbs

• Table Dimensions:

  16.5" x 20.1"

• Wire Diameter Range Capability:

  .004" - .012"

• Wire Guide Sets Included:

  .012"

• Rapid Rate:

  33.5 IPM

• Drive Method:

  AC Servo Motors (Closed Loop)

• Mfg Rated Maximum Cutting Speed:

  23.25 sq in/hr

• Control/Power Supply Dimensions:

  28" x 70" x 65"

• Control/Power Supply Weight:

  660 Lbs

• Filtration System Dimensions:

  42" x 26" x 41"

• Filtration System Weight:

  375 Lbs Dry
