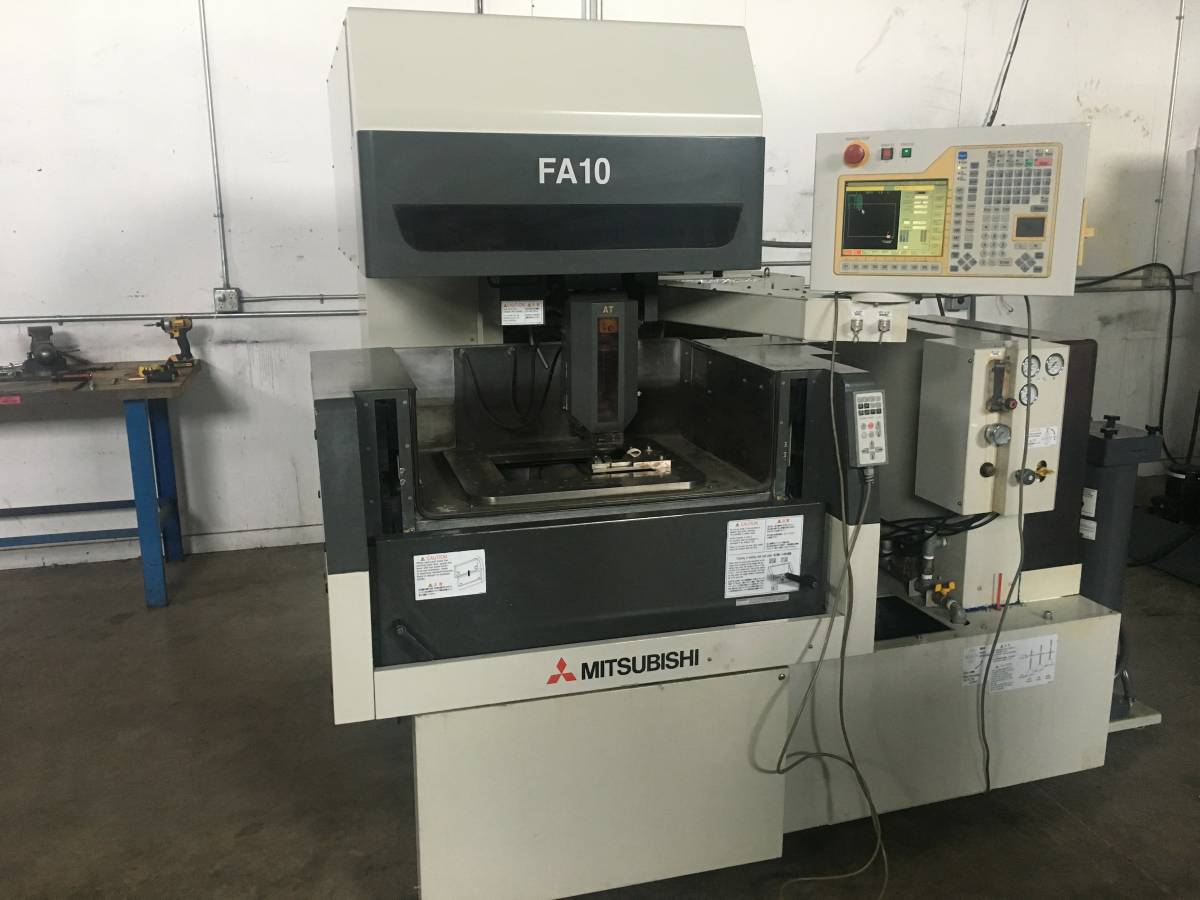

Mitsubishi FA10 2001

machine specifications

• Wire Traveling Speed:

  22

• Chuck Size (Inches):

  8"

• Spindle Taper (CAT/BT):

  HSK-463

• Spindle Speed:

  12,000 RPM

• Max Swing (inches):

  17.32"

• Bar Stock Capacity:

  2.0"

• Pallet Size (inches):

  25"

• Throat Depth:

  9.45"

• Tool Changer Type:

  60 ATC

• Turret Capacity:

  8 Positions

• V-Axis Travel:

  5555

• Vertical Travel of Ram:

  4444

• Wire Diameter (inches):

  3333

• Resonator ( Type ):

  55

• X - Axis Travel (inches):

  15.7" / 400mm

• Y - Axis Travel (inches):

  15.7" / 400mm

• Z - Axis Travel (inches):

  14.7" / 375mm

• Table Size - L:

  61"

• Table Size - W:

  30"

• Maximum Work-Piece Size:

  31.5" x 23.6" x 8.5"

• Maximum Work-Piece Weight:

  1,105 lbs

• Machining Stroke ( U x V):

  1.25" x 1.25"

• Taper Capacity:

  30 deg max / 15 deg @ 4"

• Wire Diameter Range Possible:

  0.006"- 0.012"

• Wire Guides Included:

  .010"

• Min Hole Diameter for Autothread:

  .020"

• Max Wire Spool Size:

  22 lbs

• FILTER TANK CAPACITY:

  116 gal
