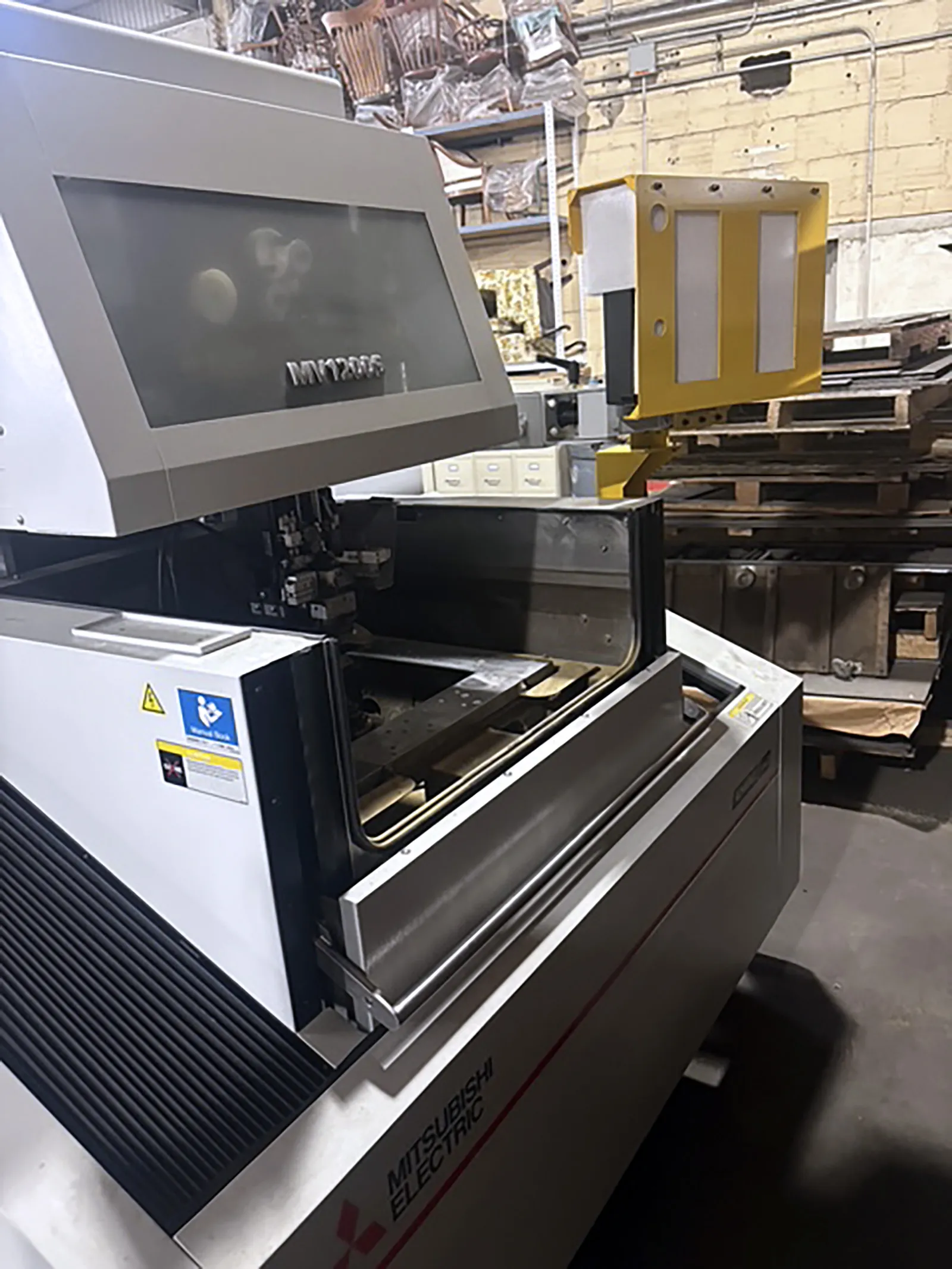

Mitsubishi MV-1200-S 2022

machine specifications

• Total Cutting Hours:

  1708

• Max. workpiece dimensions:

  31.9 x 27.6 x 8.5 (in)

• Workpiece Weight:

  1,100 (lbs)

• Table Dimensions:

  25.2 x 17.7 (in) (3-sided)

• Machining Range:

  15.7 x 11.8 x 8.7 (in)

• U/V Travel:

  ±2.4 x ±2.4 (in)

• Resolution (in) (Absolute Scales):

  .00002 (2 Millionths)

• Taper Angle:

  15° @ 8.0"

• Table Rapid Feed:

  51.2 (in/min)

• Wire Diameter:

  .004-.012 (.010 Std.) (in)

• Minimum Wire Thread Start Hole:

  .020 (in)

• Maximum Workpiece AT Height:

  8.7 (in)

• Wire Tension:

  50 ~ 2500 (g)

• WIRE SPOOLING SPEED:

  0 ~ 11.8 (in/sec)

• Filter System:

  Paper cartridge (2x)

• Filter Precision:

  5 micron

• Ion-Exchange Resin:

  1 ft³ (6.4 gal. dry)

• FILTER TANK CAPACITY:

  145 (gallons)

• Overall Machine Unit Dimensions:

  79.7 x 106.4 x 79.3 (in)
