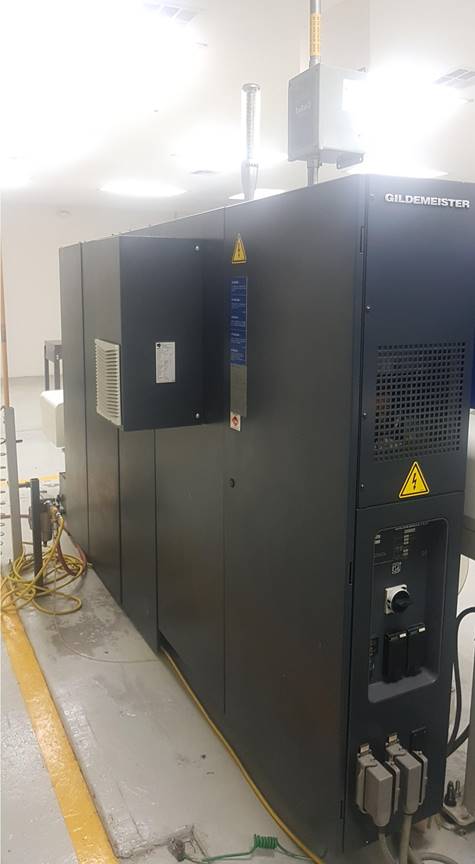

DMG Gildemeister Sprint 20 Linear 2009

machine specification

• SPINDLE BORE DIAMETER
• 0.8"

• NUMBER OF AXES
• 8

• NUMBER OF SPINDLES
• 2

• MAX BAR DIAMETER
• 20 mm

• TRAVELS
• 80 mm

• SPINDLE POWER
• 3.7 kW

• C-AXIS INDEXING
• 0.001° (precision)

• Z-AXIS STROKE
• 300 mm

• X-AXIS STROKE
• 240 mm

• NUMBER OF POSITIONS
• 3

• NUMBER OF MOTORIZED POSITIONS
• 2 electro spindles

• LIVE TOOLS SPEED
• 6000 rpm

• X/Y STROKE
• 50/350 mm

• NUMBER OF FIXED POSITIONS
• 1

• SUPPLY VOLTAGE
• 400 V

machine equipped with

• CONTROL FANUC 310IS
• BAR FEED: IEMCA MODEL: MB332-37 TYPE: DX/L
• COOLING UNIT
