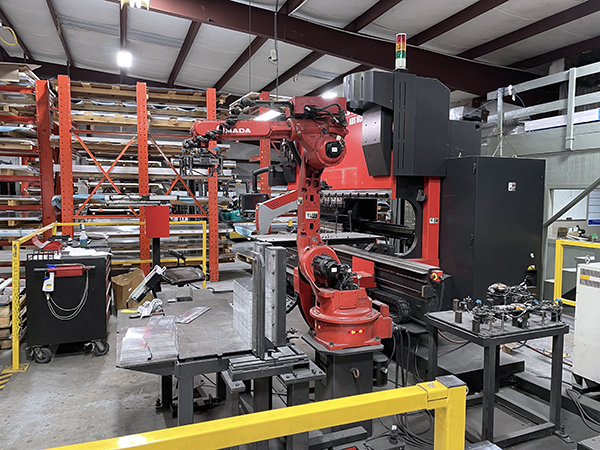

Amada Astro 100NT 2012

Sold Image

THIS MACHINE HAS SOLD AND IS NO LONGER AVAILABLE. WE MIGHT STILL HAVE A SIMILIAR MODEL OR EXACT MATCH. BROWSE CURRENT INVENTORY OR CONTACT AN AGENT BELOW.

MACHINE SPECIFICATIONS

  • Drive Motors:

    5 (AC Motor)

  • Max. Part Size:

    31.5" x 39.5"

  • Max Material Weight:

    33 Lbs

  • Press Capacity:

    33 Tons

  • Power Requirements:

    200 VAC 35 KVA 100A 3 Phase

  • Air Requirements:

    30 ft./min. @71 PSI " Dia. Line

  • Max Tonnage:

    110 U.S. tons

  • Bed Length:

    118 inches

  • Maximum Stroke Length:

    7.87 inches

  • Open Height:

    19.7 inches

  • Throat Depth:

    13.5 inches

  • Distance Between Housings:

    106 inches

  • Repeatability:

    +/- 0.00004 inches

  • Approach Speed:

    0.25

  • Bending Speed:

    0.78 inches per second (Max) programmable

  • Return Speed:

    .87 inches per second

  • Hydraulic Oil Capacity:

    15.2 gallons

  • Flange Length Repeatability :

    0.004"

  • Ram Repeatability:

    +/- 0.00004 inches

  • Angularity Accuracy:

    0.25

MACHINE EQUIPPED WITH

  • Gripper Specifications One touch pins
  • Robot for part manipulation 5 axis
  • Robot for material handling 6 axis
  • cnc control
  • Astrocam II software
  • backgauge
