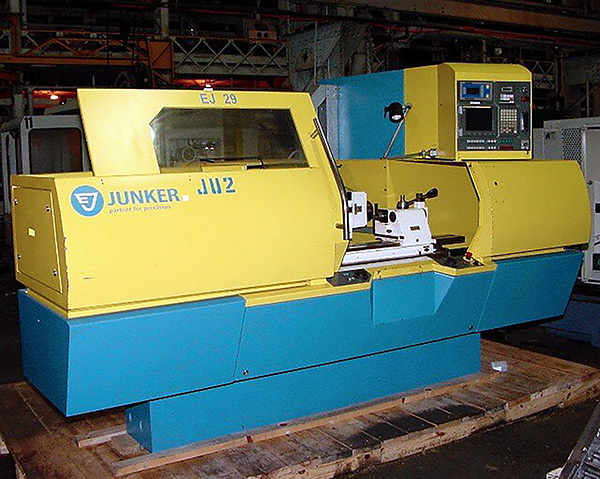

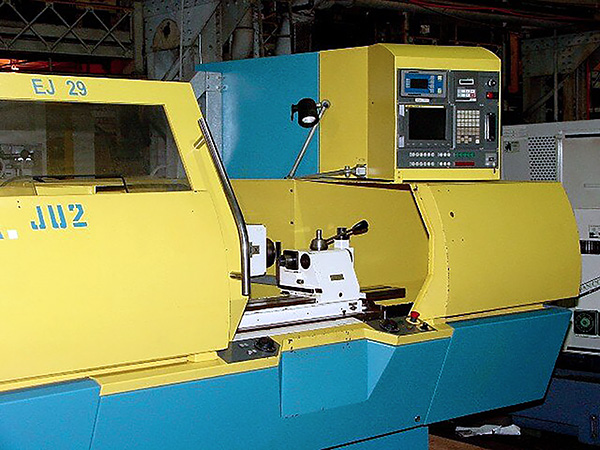

Junker EJ29 2002

MACHINE SPECIFICATIONS

• DISTANCE BETWEEN CENTERS:

  31.49"

• Center table clearance:

  7.09"

• Workpiece Weight:

  176.36 lbs

• Machine working accuracy:

  IT4 ISO

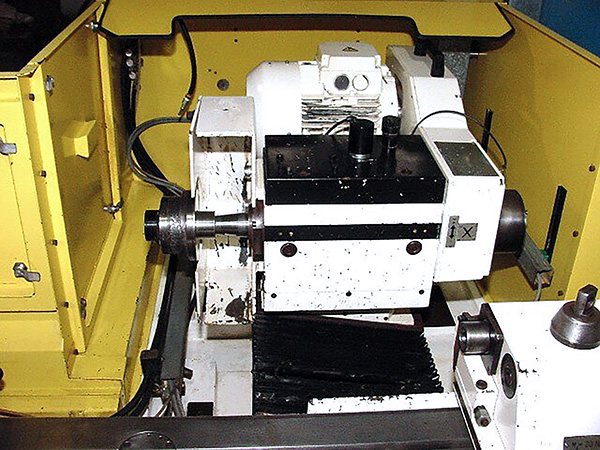

• Grinding wheel, max. diameter:

  15.74"

• Grinding wheel, max. width:

  2.48"

• Grinding wheel, clamping diameter:

  4.99"

• Motor Power:

  7.5 kW

• Grinding wheel, max. peripheral speed:

  147.64ft/s

• Wheel head, feed rate:

  13.97"

• Wheel head, adjustment angle:

  +45/-15

• Spindle Taper:

  MK5

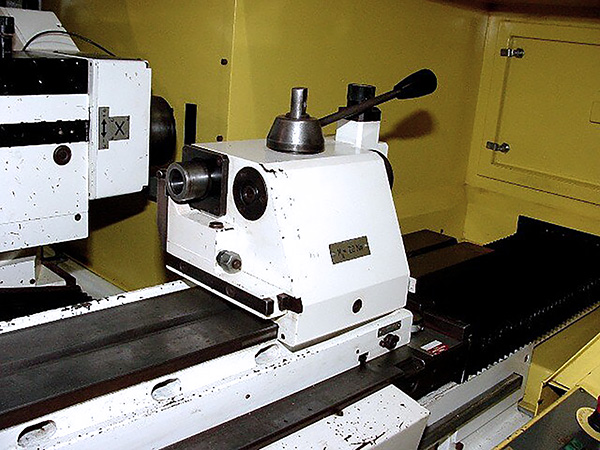

• Tailstock barrel, stroke:

  1.18"

• Table Travel:

  39.36"

• Hydraulic oil tank capacity:

  3.69 gal

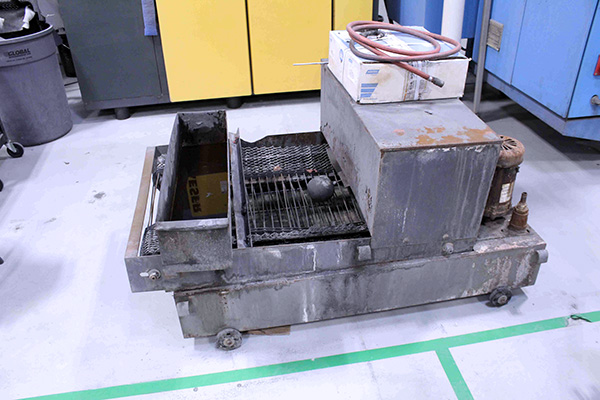

• Coolant Tank Capacity:

  66.04 gal

• Taper:

  MK4

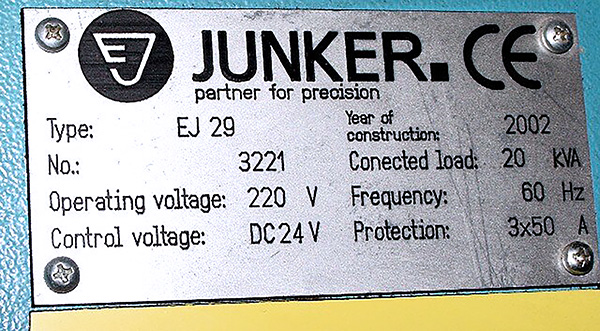

• Power Requirements:

  3x220V, 60Hz

• POWER INPUT (PRODUCTION):

  20 kVA

• Protection:

  3x50 A

• Supply Lead:

  4x10mm^2

• Dimensions:

  131.5" x 77.17" x 80.71"

• Weight:

  11,023 lbs
