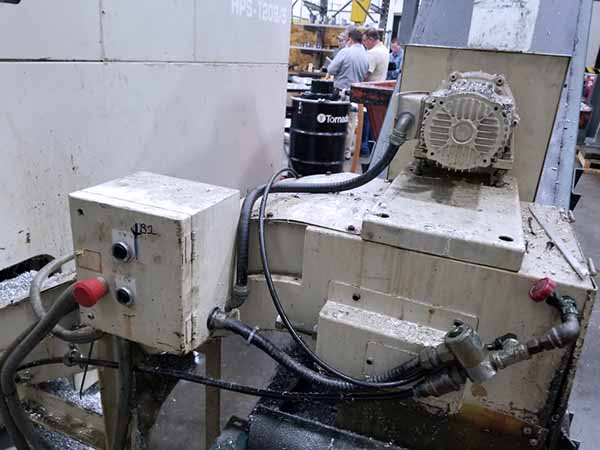

SNK HPS-120B/5 2002

MACHINE SPECIFICATIONS

• Spindle Speeds:

  150 to 12,000 RPM

• Spindle Taper:

  50 Taper

• Spindle Motor:

  50 / 40 HP

• X-Axis Travel:

  124"

• Y-Axis Travel:

  52"

• Z-Axis Travel:

  30"

• A-Axis:

  +/- 90 Deg (Spindle Tilt)

• C-Axis:

  +/- 270 Deg (Spindle Rotation)

• Feedrates (X/Y/Z):

  1 to 393 IPM

• Rapid Traverse ( X/Z ):

  945 IPM

• Y-Axis Rapid Traverse Rate:

  787 IPM

• Axis Feed Rate:

  0 - 1,800 DPM (A/C)

• Table Size:

  48" x 120"

• Table Weight Capacity:

  11,000 Lbs.
