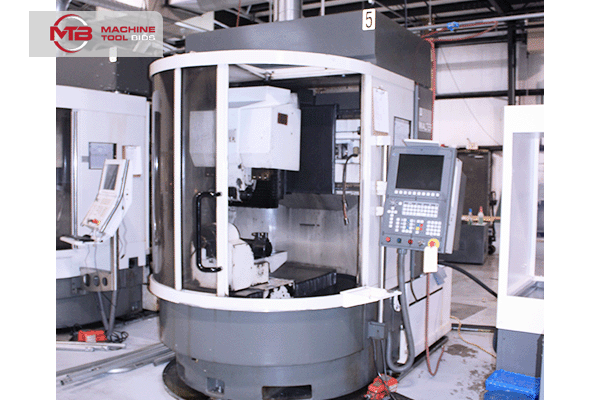

Walter Helitronic Power 1998

machine specifications

• Longitudinal traverse (X-axis):

  19.2"

• Vertical Traverse (Y-axis):

  12.5"

• Cross Traverse (Z-axis):

  25.9"

• Rotary table swiveling range (C-axis):

  +/- 200°

• Work Head :

  ISO 50

• Center Height (With / Without Worktable):

  5.7"/ 7.4"

• Max. Diameter of Workpiece :

  9.44"

• Max. Length of Workpiece:

  14.5"

• Max. Dia. of Wheel:

  7.87"

• Peak Performance:

  11,5 kW

• Grinding Spindle Speed:

  0 - 9500 rpm

• Connected Load Approx:

  25 kW (460 volts / 60 Hz)

• Dimensions w x d x h:

  102.4" x 115.3" x 89.7"

• Weight Approx.:

  4500 kg
