Pratt & Whitney 4EA

Sold Image

Pratt & Whitney 4EA 1

Pratt & Whitney 4EA 2

Pratt & Whitney 4EA 3

Pratt & Whitney 4EA 4

Pratt & Whitney 4EA 5

Pratt & Whitney 4EA 6

Pratt & Whitney 4EA 7

Pratt & Whitney 4EA 8

Pratt & Whitney 4EA 9

Pratt & Whitney 4EA 10

Pratt & Whitney 4EA 11

Pratt & Whitney 4EA 12

Pratt & Whitney 4EA 13

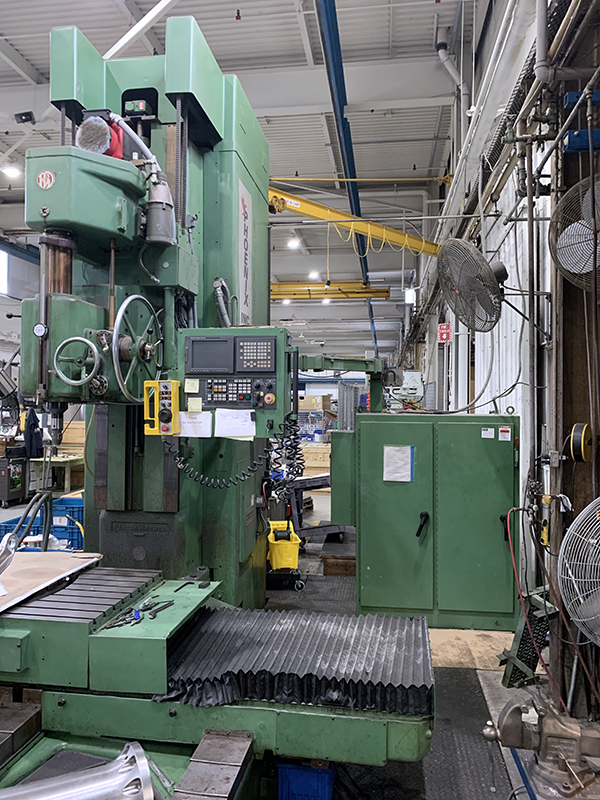

CNC Jig Bore Pratt & Whitney 4EA 14

CNC Jig Bore Pratt & Whitney 4EA 15

CNC Jig Bore Pratt & Whitney 4EA 16

CNC Jig Bore Pratt & Whitney 4EA 17

CNC Jig Bore Pratt & Whitney 4EA 18

CNC Jig Bore Pratt & Whitney 4EA 19

CNC Jig Bore Pratt & Whitney 4EA 20

CNC Jig Bore Pratt & Whitney 4EA 21

CNC Jig Bore Pratt & Whitney 4EA 22

CNC Jig Bore Pratt & Whitney 4EA 23

CNC Jig Bore Pratt & Whitney 4EA 24

CNC Jig Bore Pratt & Whitney 4EA 25

CNC Jig Bore Pratt & Whitney 4EA 26

CNC Jig Bore Pratt & Whitney 4EA 27

CNC Jig Bore Pratt & Whitney 4EA 28

THIS MACHINE HAS SOLD AND IS NO LONGER AVAILABLE. WE MIGHT STILL HAVE A SIMILIAR MODEL OR EXACT MATCH. BROWSE CURRENT INVENTORY OR CONTACT AN AGENT BELOW.

MAKE: Pratt & Whitney
MODEL: 4EA
YEAR:
TYPE: CNC Jig Bore
CONTROL: Fanuc 18i-M
REF #: 3586233

MACHINE SPECIFICATIONS

Table Working Surface:

36" x 78"
X-Axis Travel:

60"
Y-Axis Travel:

36"
Spindle Nose to Table Top (Max):

70"
Spindle feed:

0.0005" - 0.0150" (Per Revolution)
Vertical Travel, Head on Column:

54"
Variable Spindle Speed Range (16 total):

40 - 1834 RPM
Variable Feed Rate:

30 IPM
Rapid Traverse Rate:

150 IPM
Rotary Table Feed Rate:

65 Deg./Min.
Rotary Table Rapid Traverse Rate:

2.5 rpm

MACHINE EQUIPPED WITH

T-Slotted Table
42" Rotary Table
Fanuc X
Y & Z Motors & Rotary C-Axis
