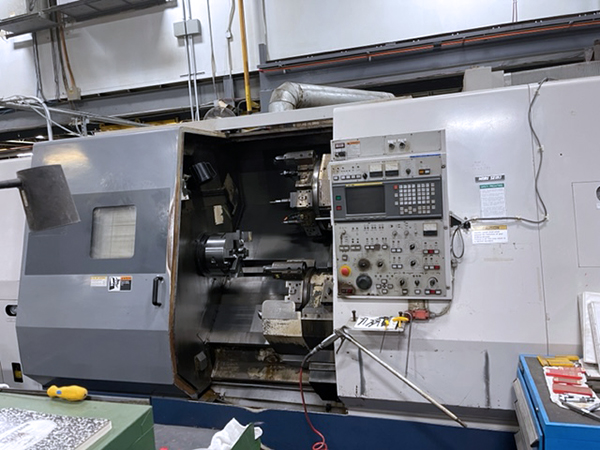

Mori Seiki ZL-35MC 1995

machine specifications

• Swing over Bed:

  23.62"

• Max Swing over Cross Slide:

  16.73"

• Between Centers:

  35.04"

• Turret 1:

  18.11"

• Turret 2:

  15.35"

• Max Turning Length:

  30.71"

• X-Axis Travel (Turret 1):

  13.86"

• Y-Axis Travel:

  8.27" (turret 2)

• Z-Axis Travel:

  33.66"

• SPINDLE SPEED RANGE:

  9-2500 min-1/RPM

• Rotary Tool Spindle Speed:

  67-2000 min-1/RPM

• Spindle Nose Type:

  JIS A2-8

• Through Spindle Hole Diameter:

  3.62"

• Turret Type (1):

  12-Station turret

• Turret type (2):

  10-Station turret

• Maximum Height:

  89.76"

• Floor Space:

  268.23" x 140.39"

• Weight:

  24,860 lbs
