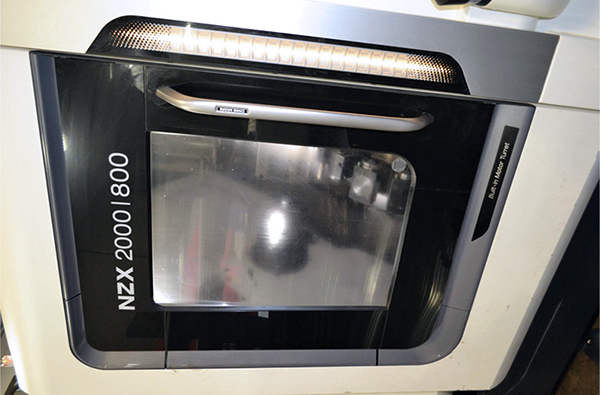

DMG Mori NZX2000/800SY 2016

machine specification

• AXIS TRAVEL X1/X2
• 8.2"

• Y1 AXIS
• 4.3"

• Z1 / Z2 TRAVEL
• 31.8"

• MAX SWING
• 800mm (31.8 inch)

• MAX POWER
• 34hp (High Torque Option)

• MAIN SPINDLE SPEED
• 5000RPM

• MAIN COLLET CHUCK
• Hainbuch Spanntop nova 65

• DRAW TUBE CAPACITY
• 2.5 inch

• C-AXIS
• 0.001°

• POWER CHUCK
• Kitagawa 3-Jaw BB208A621

• TURNING CAPACITY
• 320mm (12.5 inch)

• COUNTER SPINDLE POWER
• 34hp (High Torque Option)

• COUNTER SPINDLE SPEED
• 5000RPM

• COUNTER SPINDLE COLLET CHUCK
• Hainbuch Spanntop Nova 65

• COUNTER SPINDLE TURNING CAPACITY
• 320mm (12.5 inch)

• COUNTER SPINDLE DRAW TUBE CAPACITY
• 2.5 inch

• COUNTER SPINDLE C-AXIS
• 0.001°

• POWER CHUCK
• Kitagawa 3-Jaw BB208A621

• TOOLS ON TURRET
• 32 Station 16 X 2

• DIRECT DRIVE MILLING SPEED
• 12,000 RPM

machine equipped with

• CONTROL: FANUC 31IB
• 8-AXIS CNC LATHE
• HYDRAULIC BRAKE ON MAIN AND COUNTER SPINDLE
• (2) POWER CHUCK KITAGAWA 3-JAW BB208A621 (MAIN AND SUB-SPINDLE)
• (2) COLLET CHUCK HAINBUCH SPANNTOP NOVA 65 (MAIN AND SUB-SPINDLE)
• HIGH TORQUE OPTION ON MAIN AND SUB-SPINDLE
• WORKPIECE UNLOADER
• WORKPIECE CONVEYOR
• RENISHAW TOOL PROBES
• HIGH-PRESSURE COOLANT SYSTEM 300PSI X 2 FLUSHING OF CHUCKS WAY COVERS
• HINGE TYPE CHIP CONVEYOR
• HOBBING SOFTWARE OPTION ON MAIN SPINDLE
• IEMCA KID 80 BAR LOADER
• LIVE TOOLING SPINDLES: 3 UNITS STRAIGHT TYPE (X-AXIS)
• 8 UNITS 90 DEGREE (“L”) TYPE (Z-AXIS)
• BORING AND STICK ADAPTOR ASSORTMENT
• UNDER 10000 CUTTING HOURS
